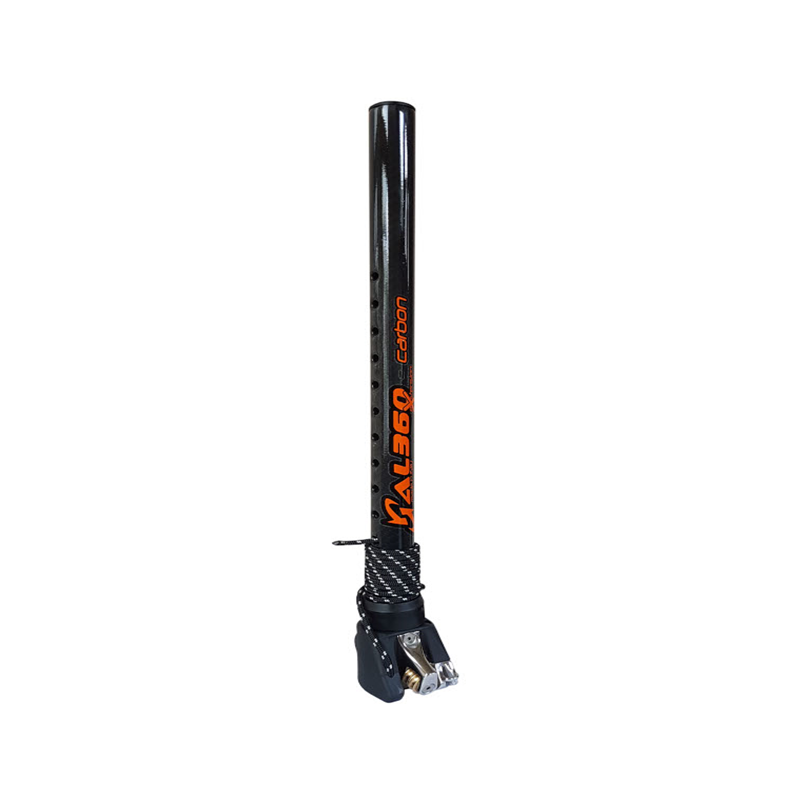

AL360 Prolunghe Rdm Euro Pin Carbon

After a long process of designing with 3D software and an infinite number of tests to give birth to a extension of great design and with big content of technological solutions of the highest level and quality.

The extensions are of three different materials: alu, ergal and full carbon 100%, in the next pages the technical details of each one.

1 – the mast extension tube is made of a single piece (Detail. 4), reaches the bottom of the plastic part
2 – The attack of the pulleys and cleats are a unique fusion of stainless steel
3 – cleats its inclined in line with the pulley to allow an optimal trim of the sail and avoid twisting the rope and greater resilience.
4 – The attack pulleys is screwed directly into the extension tube

Material used for the tube: IM unidirectional PREPEG fiber 100% carbon

MECHANICAL CHARACTERISTICS
Tensile strength (Mpa) 5500
Modulus: 290-2950 GPa

CODE MODEL SIZE
E.C.0-25 rdm carbon pin 0-25 mm
E.C.0-35 rdm carbon pin 0-35 mm
E.C.0-45 rdm carbon pin 0-45 mm
