After a long process of designing with 3D software and an infinite number of tests to give birth to a extension of great design and with big content of technological solutions of the highest level and quality.
The extensions are of three different materials: alu, ergal and full carbon 100%, in the next pages the technical details of each one.

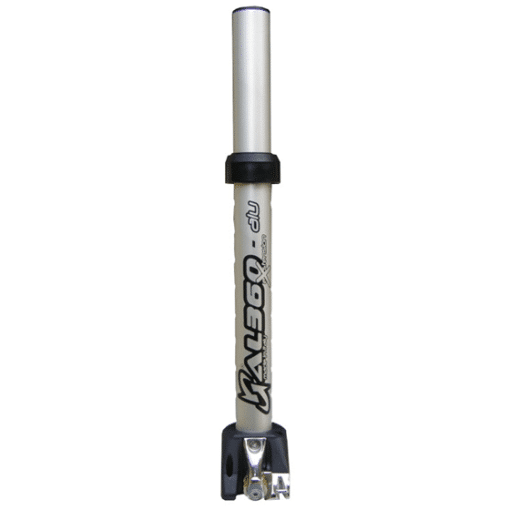

1 – the mast extension tube is made of a single piece (Detail. 4), reaches the bottom of the plastic part
2 – The attack of the pulleys and cleats are a unique fusion of stainless steel
3 – cleats its inclined in line with the pulley to allow an optimal trim of the sail and avoid twisting the rope and greater resilience.
4 – The attack pulleys is screwed directly into the extension tube
Material used for the tube: Alloy 6082
Tensile strength Rm (N / mm): 290
Yield strength Rp 0.2: 250
Elongation A5: 8
Hardness HBS: 95
CODE MODEL SIZE
E.A.0-15 rdm alu pin 0-15 mm
E.A.0-25 rdm alu pin 0-25 mm
E.A.0-35 rdm alu pin 0-35 mm
