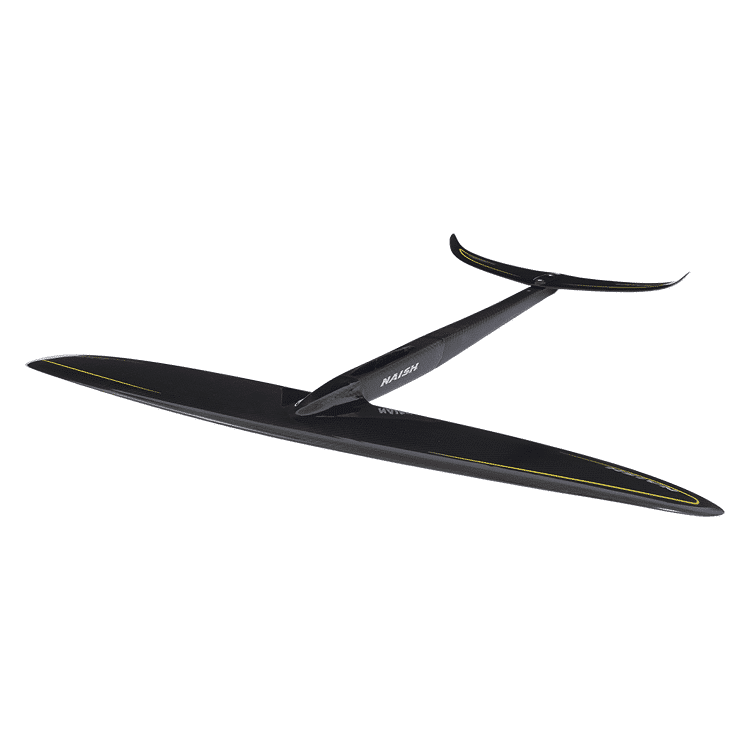

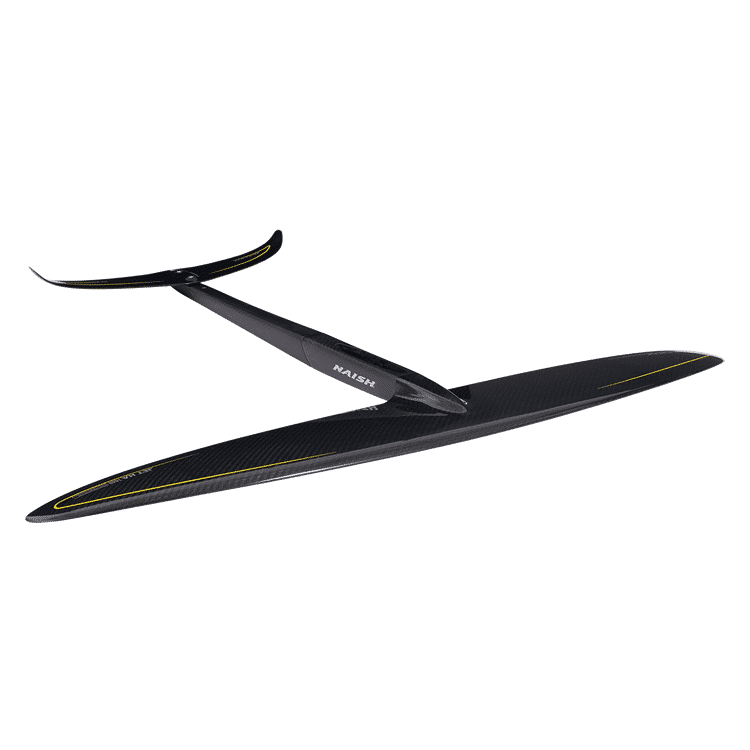

CARBON FOIL SYSTEM HA SEMI-COMPLETE
Expert Performance Foil Surfing/Downwind Foiling/Wing-Surfing
Designed for advanced and semi-advanced foilers looking to push their performance levels in surf, SUP, Wing-surfer, and downwind foiling. These wings feature high aspect ratio planforms and proprietary thin section profiles ? the result is maximum glide, excellent pumping, and improved top speed while still maintaining the excellent turning and control that defines the Jet range. To complement the high-end performance of these new wings, the complete foils feature a new high aspect stabilizer that emphasizes pumping ability and glide. Designed with a thinner profile and higher aspect ratio, they support the higher speed of the HA front wings while giving excellent response to rider input.
SET INCLUDES
Jet HA Front Wing/front part of fuselage
Jet HA Stabilizer
Standard length back part of fuselage
2x 20 mm M6 – to connect the front part of the fuselage with the back part/4x 30 mm M6 + T Nuts to connect the mast (sold seperately) with the board track system
T30 Torx Driver
EVA Wing Covers
Carry Case
CONSTRUCTION FEATURES
100% Pre-preg 3K High Gloss Carbon Fiber Front Wing, Stabilizer, and Fuselage (Matte)
Semi-monocoque front wing fuselage design
Lightest weight at maximum stiffness and durability
Stainless Steel M6 Torx T30 Hardware for stabilizer connection and back end fuselage connection
Compatible with all existing stabilizers
Front Wing Aspect Ratio Wingspan Projected Surface Area Stabilizer Fuselage
Jet HA 1040 7.9 34.3″/87 cm 161.2 in²/1040 cm² Jet HA 220 Standard
Jet HA 1240 7.2 37.2″/94.5 cm 192.2 in²/1240 cm² Jet HA 280 Standard
Jet HA 1400 6.9 38.6″/98 cm 217 in²/1400 cm² Jet HA 280 Standard
Jet HA 1800 5.6 39.4″/100 cm 279 in²/1800 cm² Jet HA 310 Standard
