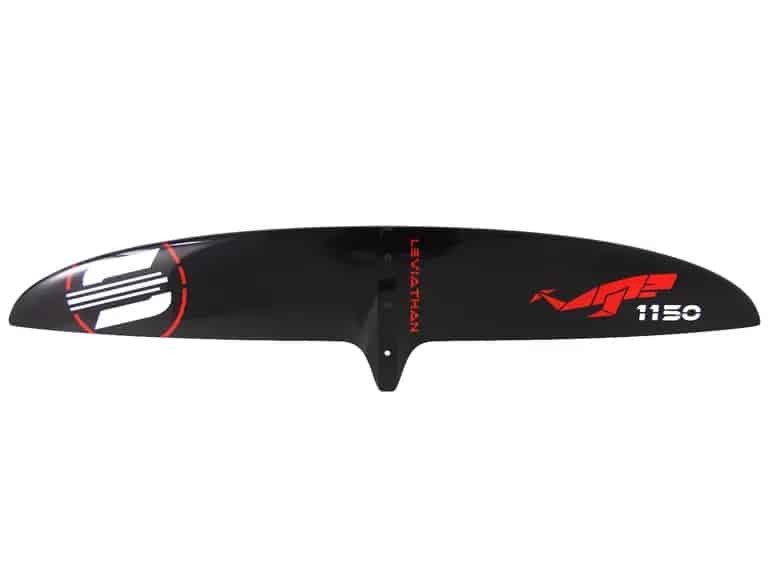

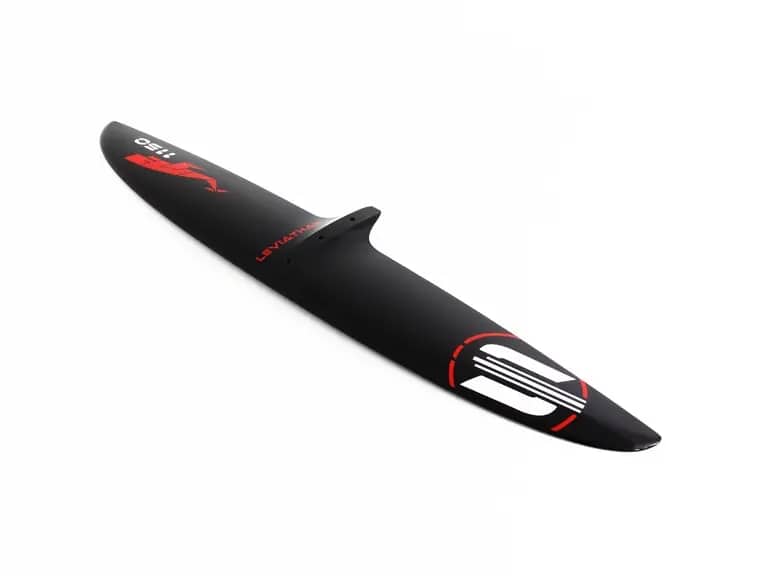

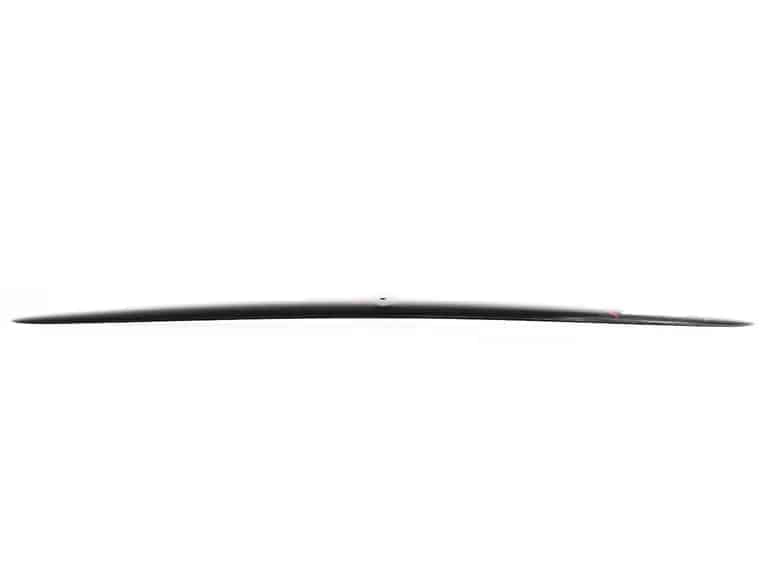

Front Wing Leviathan 1150
MAIN SPECS
Surface: 1580 cm2
AR: 8,37
Wingspan: 1150 mm
Volume: 2071 cm3
Range Leviathan
Recommended for Dock-Start – Downwind – Freeride – Pumping – SUP
Wing-Fuselage Connection T8
The Leviathan 1150 front wing, with its high wingspan, medium surface and high aspect ratio, offers quick starts and efficient rides for those already trained in pumping and dock-start. Thanks to its excellent gliding, it’s a great option also for wingfoil and downwind in medium-low wind conditions.
The reduced drag due to its relatively small surface area allows for very good speeds for its dimensions, making it a top choice for those who want to take the Leviathan experience to the limit.
Its large size makes it unsuitable for jumps and freestyle.
Dimensions & Advanced specs
| Front Wing – Span | 1150 mm |
|---|---|
| Front Wing – Surface | 1580 cm2 |
| Front Wing – Root Chord | 170 mm |
| Front Wing – Aspect Ratio | 8,37 |
| Front Wing – Maximum Thickness | 22,9 mm |
| Front Wing – Volume | 2071 cm3 |
| Front Wing – Weight (ca.) | 1383 g |
| Front Wing – Material | Full Carbon (with core) |
| Front Wing – Connection | T8 |
Content
Compatible products
Fuselage 700 – High Strength
F700HS
Fuselage 899 – High Strength
F899HS
Fuselage 900 – High Strength
F900HS
Fuselage Kraken 663
F663K
Fuselage Kraken 703
F703K
Fuselage Kraken 753
F753K
Fuselage Kraken 903
F903K
