Sabfoil Front Wing Leviathan 13501870 cm2 – AR 9,75 – T8

SABFOIL-25-223

WING FOIL
PUMP FOIL
SUP FOIL
DOWNWIND

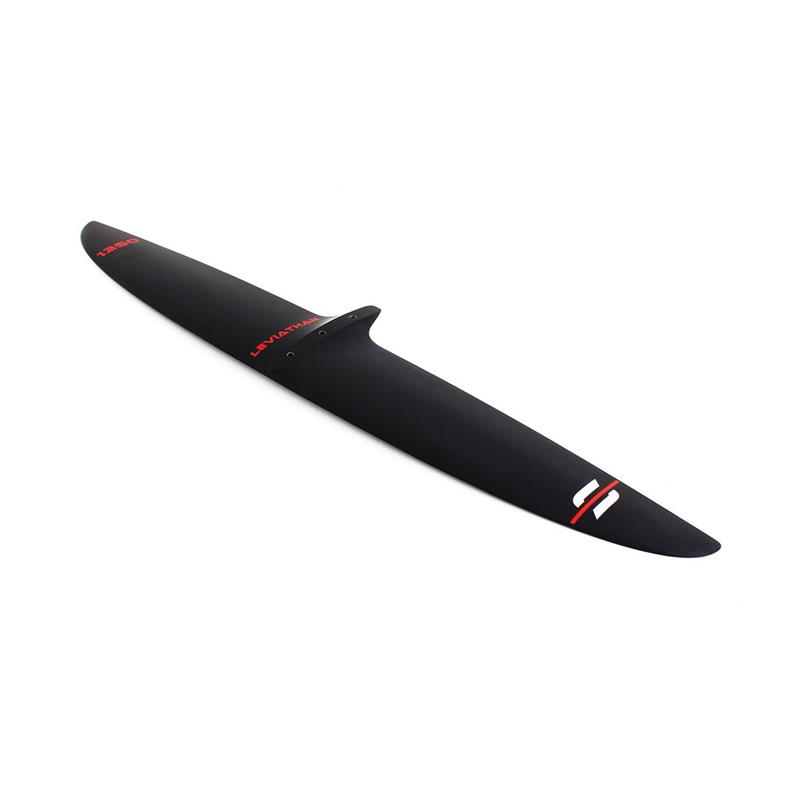

Sabfoil Leviathan 1350 | T8 Hydrofoil Front Wing
MAIN SPECS

Surface: 1870 cm2

AR: 9,75

Wingspan: 1350 mm

Volume: 2423 cm3

Range Leviathan
Recommended for Freeride – SUP – Dock-Start – Pumping – Downwind
Take Off Speed 7 – 9 kn
Top End Speed (average 80kg user) 13 – 15 kn
Wing-Fuselage Connection T8

The Leviathan 1350 front wing is a versatile and high-performing option for hydrofoil riders. With its great glide and lift, this front wing is perfect for pumping and dock-start. Its high aspect ratio and efficiency make it ideal also for winging in low wind conditions and for downwind rides with a light swell.

The WL1350 front wing is a perfect choice for those looking for smooth rides, easy starts, and great gliding.

The WL1350/PF is hand sanded to achieve a matte surface with 0-thickness graphics, the SAB Pro Finish, for an elegant Made in Italy product with maximum performance.

Its large size makes it unsuitable for jumps and freestyle.

Dimensions & Advanced specs
Front Wing – Span
1350 mm
Front Wing – Surface
1870 cm2
Front Wing – Root Chord
170 mm
Front Wing – Aspect Ratio
9,75
Front Wing – Maximum Thickness
22,9 mm
Front Wing – Volume
2423 cm3
Front Wing – Weight (ca.)
1530 g
Front Wing – Material
Full Carbon (with core)
Front Wing – Connection
T8
