Sabfoil Front Wing Leviathan 17502400 cm2 – AR 11,30 – T8

SABFOIL-25-225

PUMP FOIL
SUP FOIL
DOWNWIND

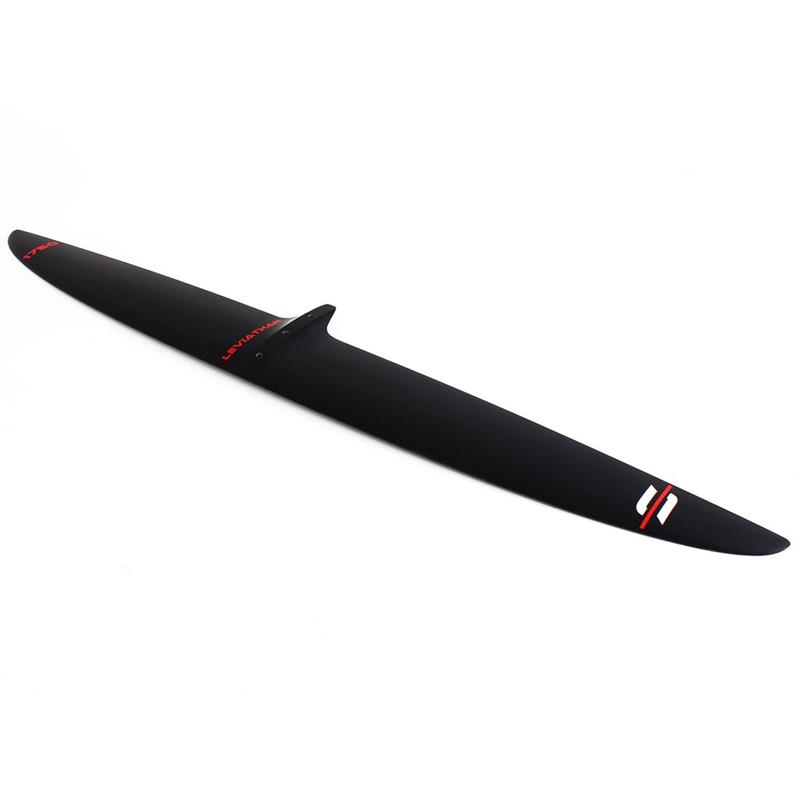

Sabfoil Leviathan 1750 | T8 Hydrofoil Front Wing
MAIN SPECS

Surface: 2400 cm2

AR: 12,70

Wingspan: 1750 mm

Volume: 3097 cm3

Range Leviathan
Recommended for Dock-Start – Downwind – SUP – Pumping
Take Off Speed 6 kn ?
Top End Speed (average 80kg user) 10 – 12 kn
Wing-Fuselage Connection T8

The Leviathan 1750 front wing is a unique piece of equipment for pump foilers but above all for SUP enthusiasts.

It is designed specifically for flat water conditions and offers exceptional efficiency in gliding and take-off. Although its size may make it less maneuverable, it still provides an exciting and unmatched experience. With just a few paddles, you’ll be out of the water and gliding along at a speed that’s noteworthy for its huge size, allowing for maximum fun and minimal wait time for wind on the shore.

Its impressive dimensions and specs, including a huge wingspan, a great surface area, and a very high aspect ratio, set the WL1750 apart in the market. The Leviathan 1750 front wing is an excellent option for anyone looking for an innovative and performing piece of equipment, in particular for SUP foil enthusiasts.

The WL1750/PF is hand sanded to achieve a matte surface with 0-thickness graphics, the SAB Pro Finish, for an elegant Made in Italy product with maximum performance.

Its large size makes it unsuitable for jumps and freestyle.

Dimensions & Advanced specs
Front Wing – Span
1750 mm
Front Wing – Surface
2400 cm2
Front Wing – Root Chord
170 mm
Front Wing – Aspect Ratio
12,70
Front Wing – Maximum Thickness
22,9 mm
Front Wing – Volume
3097 cm3
Front Wing – Weight (ca.)
2367 g
Front Wing – Material
Full Carbon (with core)
Front Wing – Connection
T8
