Sabfoil Front Wing Leviathan PRO 1060947 cm2 – AR 11,53 – T8

SABFOIL-25-227

WING FOIL
PUMP FOIL
SUP FOIL
DOWNWIND

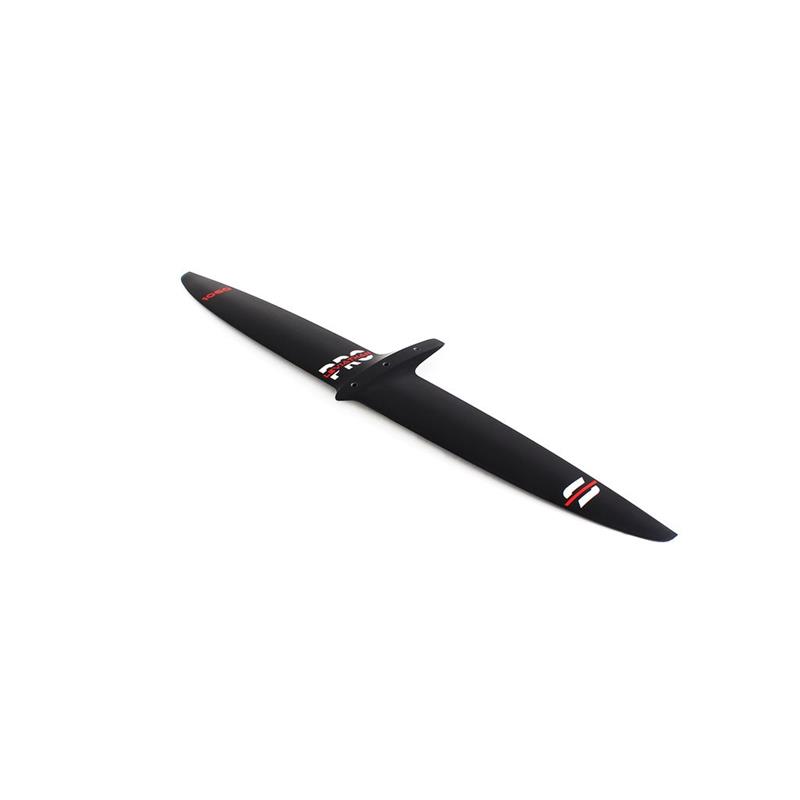

Sabfoil Leviathan PRO 1060 | T8 Hydrofoil Front Wing

Sabfoil’s most radical downwind weapon

Range Leviathan PRO
Recommended for Fast Downwind – Pumping – Dock-Start – Pump Race – SUP – SUP Race – Downwind
Take Off Speed 10 – 12 kn
Top End Speed (average 80kg user) 25 – 27 kn
Wing-Fuselage Connection T8

Sabfoil’s most radical downwind weapon.

We designed this line with the clear goal to break records.

No compromise, just pure speed and gliding pleasure with its ultra-high AR.

Built to win downwind and pump races.

The size and design of this front wing make it unsuitable for jumps and freestyle, as well as its use paired with Piuma fuselages and masts.

Dimensions & Advanced specs
Front Wing – Span
1060 mm
Front Wing – Surface
947 cm2
Front Wing – Root Chord
110 mm
Front Wing – Aspect Ratio
11,53
Front Wing – Maximum Thickness
14 mm
Front Wing – Volume
757 cm3
Front Wing – Weight (ca.)
1250 g
Front Wing – Material
Full Carbon (no foam core)
Front Wing – Connection
T8
