Sabfoil Front Wing Leviathan PRO 11601083 cm2 – AR 12,42 – T8

SABFOIL-25-228

WING FOIL
PUMP FOIL
SUP FOIL
DOWNWIND

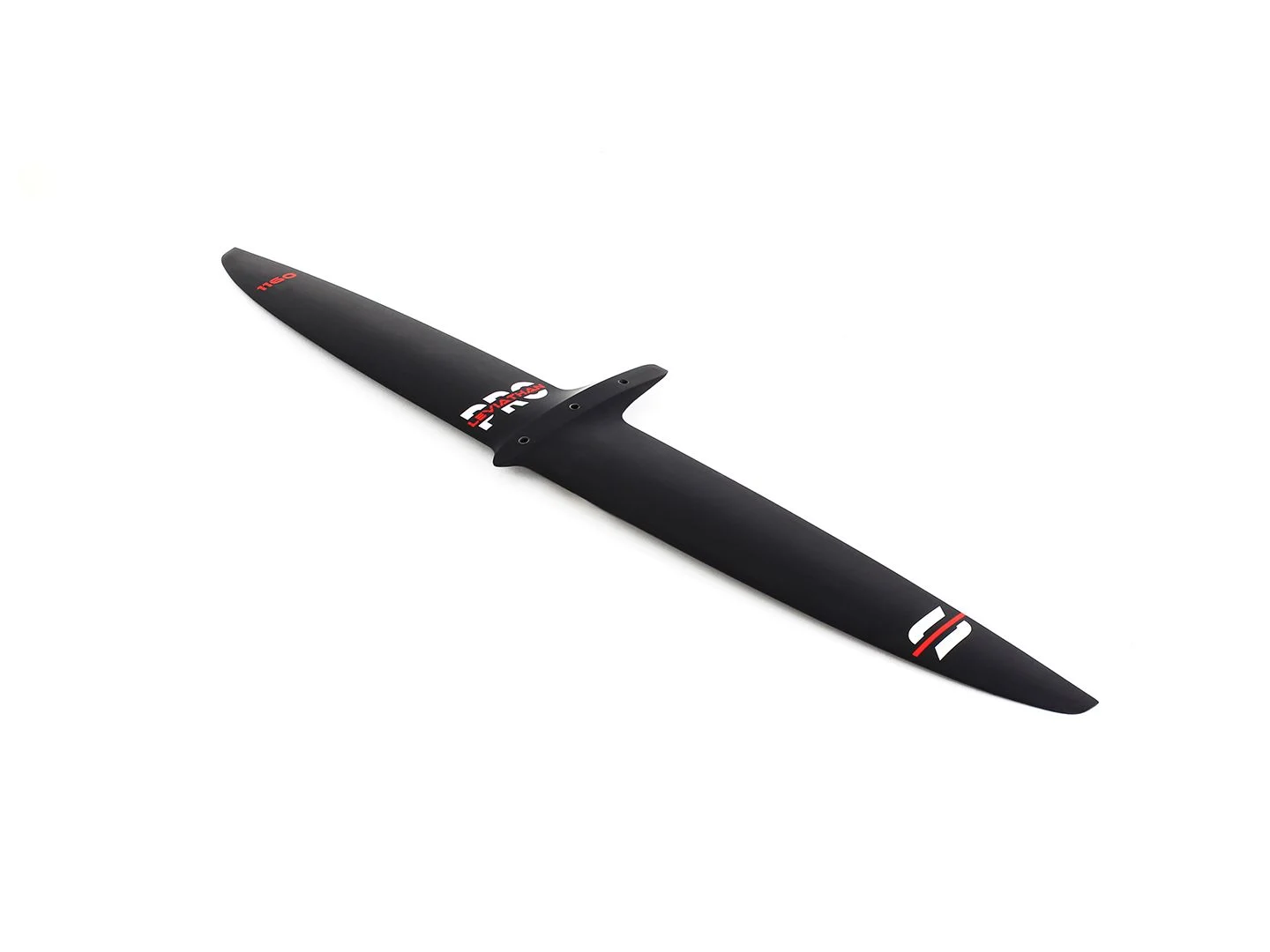

Sabfoil Leviathan PRO 1160 | T8 Hydrofoil Front Wing

Sabfoil’s most radical downwind weapon.

Range Leviathan PRO
Recommended for Fast Downwind – Pumping – Dock-Start – Pump Race – SUP – SUP Race – Downwind
Take Off Speed 7 – 9 kn
Top End Speed (average 80kg user) 22 – 24 kn
Wing-Fuselage Connection T8

Sabfoil’s most radical downwind weapon.

We designed this line with the clear goal to break records.

No compromise, just pure speed and gliding pleasure with its ultra-high AR.

Built to win downwind and pump races.

Its large size makes it unsuitable for jumps and freestyle.

Dimensions & Advanced specs
Front Wing – Span
1160 mm
Front Wing – Surface
1083 cm2
Front Wing – Root Chord
115 mm
Front Wing – Aspect Ratio
12,42
Front Wing – Maximum Thickness
14 mm
Front Wing – Volume
878 cm3
Front Wing – Weight (ca.)
1462 g
Front Wing – Material
Full Carbon (no foam core)
Front Wing – Connection
T8
