Sabfoil Glider Carbon Glass 1100-703-483WT1100/CG – F703K – S483/CG

SABFOIL-25-193

WING FOIL
Carbonglass 1100-703-483

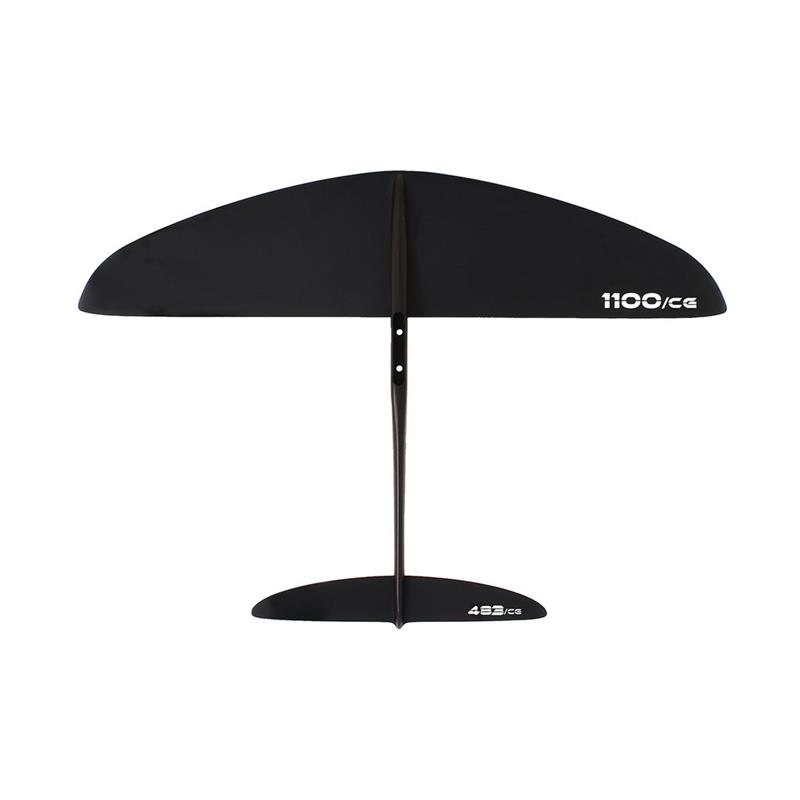

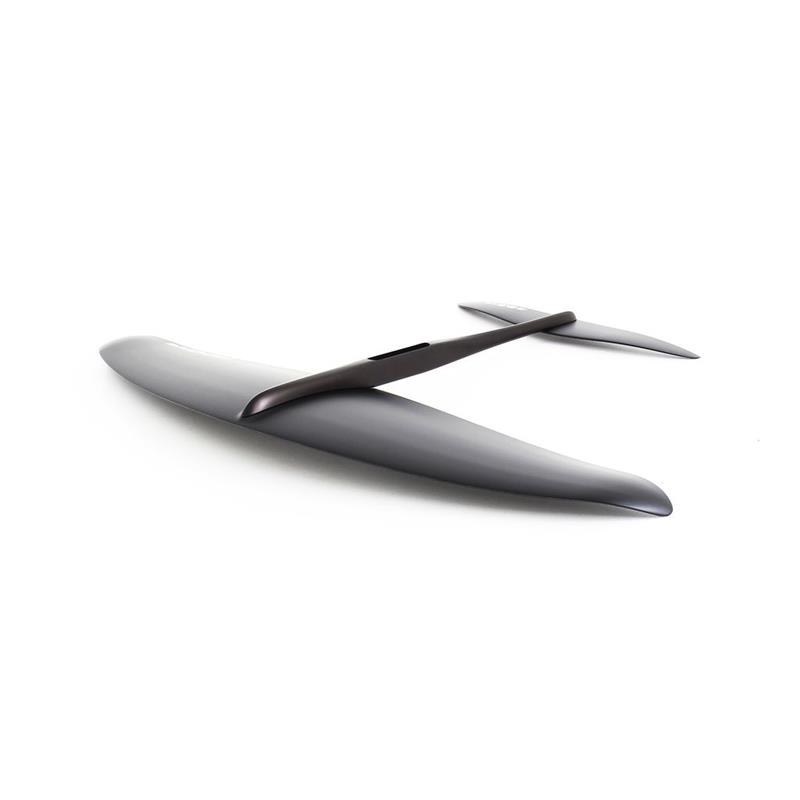

Sabfoil Carbonglass hydrofoil glider

W1100/CG- S483/CG – F703K

Range Carbonglass
Recommended for Easy Riding – Freeride
Take Off Speed 10 – 12 kn
Top End Speed (average 80kg user) 16 – 18 kn

The Carbonglass line was created to offer you equipment worthy of SABFOIL performance at an affordable price, without resorting to aluminum masts.

To reduce costs, we have re-engineered the layering of some of our historical models, combining carbon fiber and fiberglass to create a dedicated blend for each piece, ensuring quality and performance while keeping the price as low as possible.

We applied the same principle to the masts, opting for a thicker, more rigid profile and bonding the carbon plate, eliminating all hardware and making it a super-rigid monoblock.

Whether you are an expert user or a beginner, the Carbonglass series removes any barrier to getting in the water and enjoying this wonderful sport!

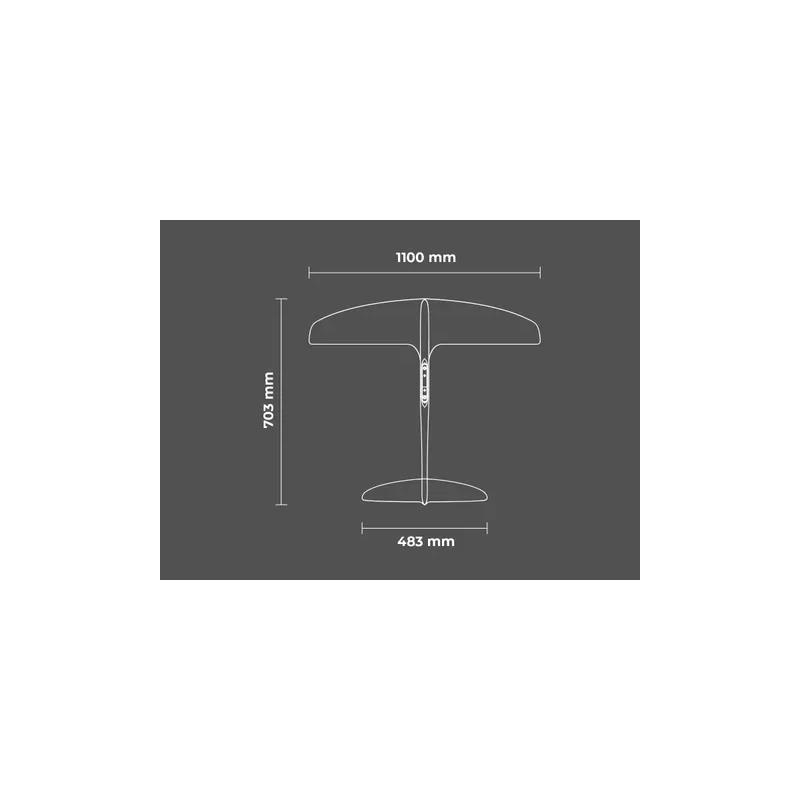

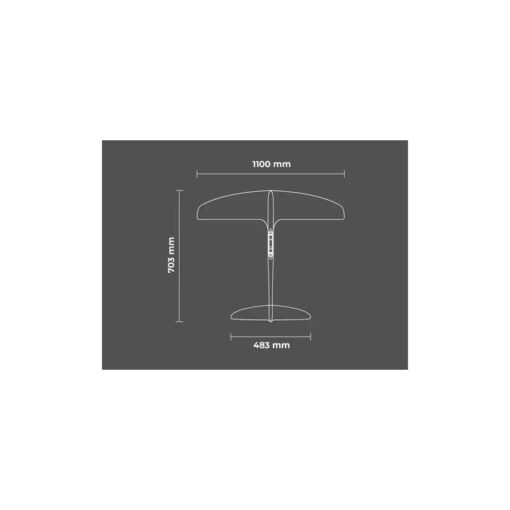

Dimensions & Advanced specs
Front Wing – Span 1100 mm
Front Wing – Surface 2100 cm2
Front Wing – Volume 2416 cm3
Front Wing – Aspect Ratio 5,70
Front Wing – Root Chord 246,4 mm
Front Wing – Maximum Thickness 24,2 mm
Stabilizer – Span 483 mm
Stabilizer – Surface 316 cm2
Stabilizer – Aspect Ratio 7,60
Stabilizer – Root Chord 85 mm
Stabilizer – Maximum Thickness 11,5 mm
Fuselage – Length 703 mm
Foil Set – Weight (ca.) 2,60 kg
Content
W1100/CG x 1
S483/CG x 1
Fuselage 703 T8/R8 x 1
F703K

Hardware Kit WT790/WT1100/WT1250/WM699/WM799 x 1
MH134

Hardware Kit S325/S355/S375/S380/S395/S425/S430/S450/S480/S483 x 1
MH108

Hardware Kit F663K/F703K/F753K/F903K/F1003K x 1
MH138
