Sabfoil Glider Carbon Glass 945-703-483WO945/CG – F703K – S430/CG

SABFOIL-25-212

WING FOIL
SURF FOIL
Carbonglass 945-703-483

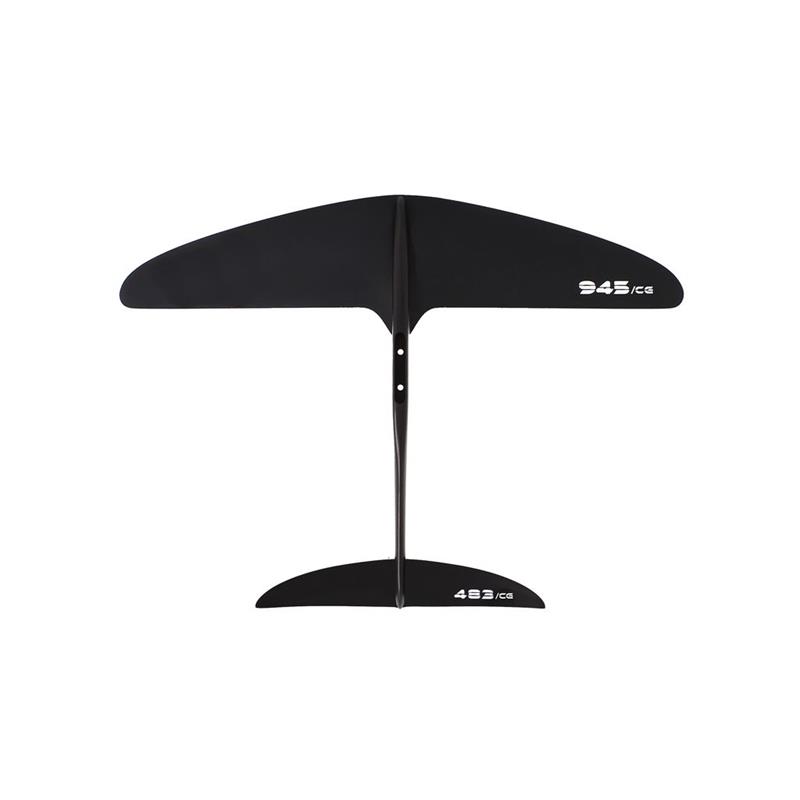

Sabfoil Carbonglass hydrofoil set

W945/CG- S483/CG – F703K

Range Carbonglass
Recommended for Surf – Wave – Freeride
Take Off Speed 10 – 12 kn
Top End Speed (average 80kg user) 19 – 21 kn

The Carbonglass line was created to offer you equipment worthy of SABFOIL performance at an affordable price, without resorting to aluminum masts.

To reduce costs, we have re-engineered the layering of some of our historical models, combining carbon fiber and fiberglass to create a dedicated blend for each piece, ensuring quality and performance while keeping the price as low as possible.

We applied the same principle to the masts, opting for a thicker, more rigid profile and bonding the carbon plate, eliminating all hardware and making it a super-rigid monoblock.

Whether you are an expert user or a beginner, the Carbonglass series removes any barrier to getting in the water and enjoying this wonderful sport!

Dimensions & Advanced specs
Front Wing – Span 945 mm
Front Wing – Surface 1300 cm2
Front Wing – Volume 1499 cm3
Front Wing – Aspect Ratio 6,90
Front Wing – Root Chord 190 mm
Front Wing – Maximum Thickness 19,5 mm
Stabilizer – Span 483 mm
Stabilizer – Surface 316 cm2
Stabilizer – Aspect Ratio 7,60
Stabilizer – Root Chord 85 mm
Stabilizer – Maximum Thickness 11,5 mm
Fuselage – Length 703 mm
Foil Set – Weight (ca.) 2,16 kg
Content
W945/CG x 1
S483/CG x 1
Fuselage 703 T8/R8 x 1
F703K

Hardware Kit WO835/WO940/WO945/W950 x 1
MH133

Hardware Kit S325/S355/S375/S380/S395/S425/S430/S450/S480/S483 x 1
MH108

Hardware Kit F663K/F703K/F753K/F903K/F1003K x 1
MH138
