Sabfoil Glider Carbon Glass 999-703-483WM999/CG – F703K – S483/CG

SABFOIL-25-206

WING FOIL
Carbonglass 999-703-483

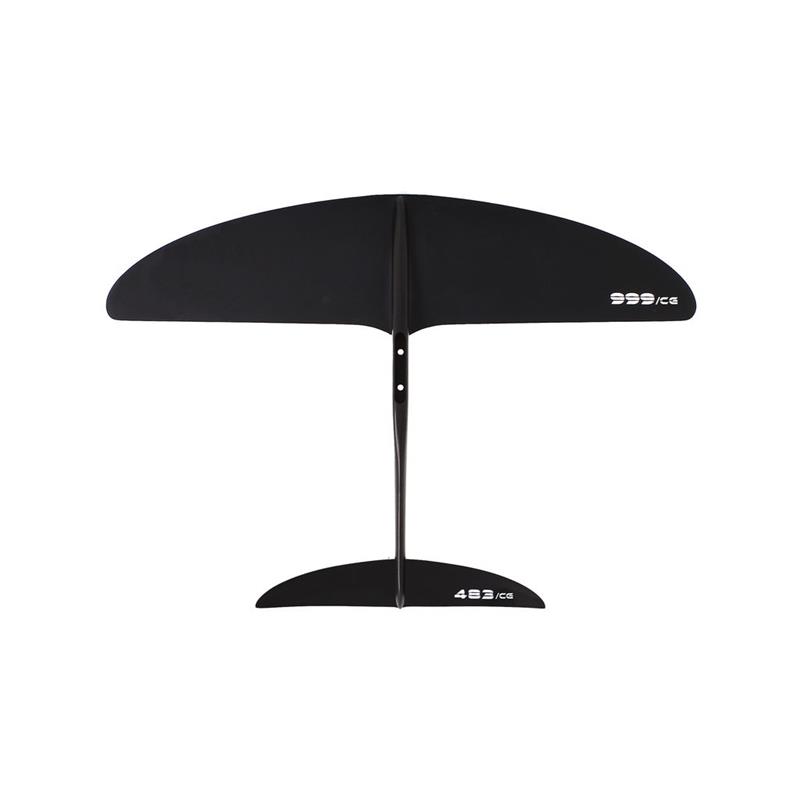

Sabfoil Carbonglass hydrofoil glider

W999/CG- S483/CG – F703K

Range Carbonglass
Recommended for Freeride – Freestyle – Wave
Take Off Speed 10 – 12 kn
Top End Speed (average 80kg user) 19 – 21 kn

The Carbonglass line was created to offer you equipment worthy of SABFOIL performance at an affordable price, without resorting to aluminum masts.

To reduce costs, we have re-engineered the layering of some of our historical models, combining carbon fiber and fiberglass to create a dedicated blend for each piece, ensuring quality and performance while keeping the price as low as possible.

We applied the same principle to the masts, opting for a thicker, more rigid profile and bonding the carbon plate, eliminating all hardware and making it a super-rigid monoblock.

Whether you are an expert user or a beginner, the Carbonglass series removes any barrier to getting in the water and enjoying this wonderful sport!

Dimensions & Advanced specs
Front Wing – Span 999 mm
Front Wing – Surface 1747 cm2
Front Wing – Volume 1973 cm3
Front Wing – Aspect Ratio 5,71
Front Wing – Root Chord 222 mm
Front Wing – Maximum Thickness 25,9 mm
Stabilizer – Span 483 mm
Stabilizer – Surface 316 cm2
Stabilizer – Aspect Ratio 7,60
Stabilizer – Root Chord 85 mm
Stabilizer – Maximum Thickness 11,5 mm
Fuselage – Length 703 mm
Foil Set – Weight (ca.) 2,61 kg
Content
W999/CG x 1
S430/CG x 1
Fuselage 703 T8/R8 x 1
F703K

Hardware Kit WL950/WL1150/WL1350/WL1550/WL1750/WM999 x 1
MH163

Hardware Kit S325/S355/S375/S380/S395/S425/S430/S450/S480/S483 x 1
MH108

Hardware Kit F663K/F703K/F753K/F903K/F1003K x 1
MH138
