Sabfoil Glider Razor PRO 825-653-370WRP/825 – F653K – SF/370

SABFOIL-25-170

WING FOIL
SURF FOIL
DOWNWIND
Razor PRO 825-653-370

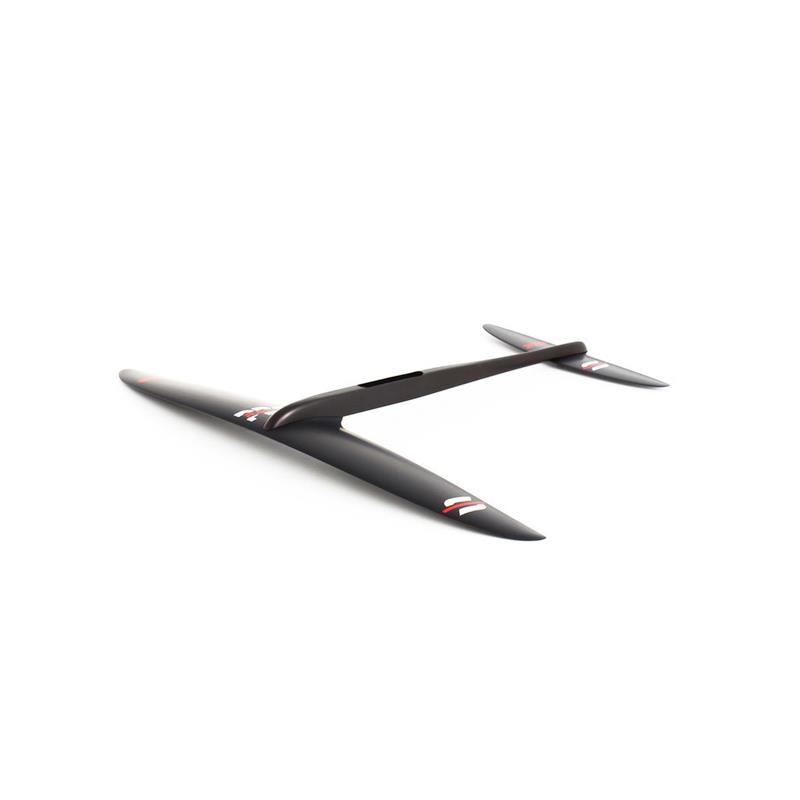

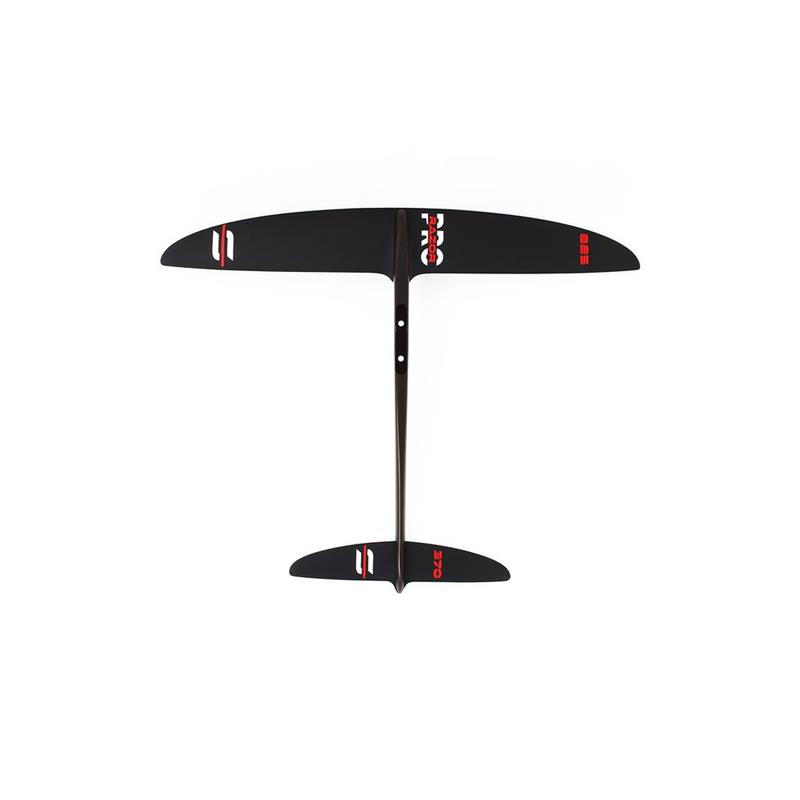

Sabfoil Razor PRO hydrofoil glider

WRP/825- SF/370 – F653K

Range Razor PRO
Recommended for Wave – Downwind – Fast Downwind – Fast Freeride – Freeride – Prone Surf – Surf
Take Off Speed 13 – 15 kn
Top End Speed (average 80kg user) 25 – 27 kn

The KRP/825-653-370/83 is a performing and very versatile surf foil glider. Meant for those riders who want to surf any kind of wave while keeping a great performance.

The Razor PRO 825 front wing is designed to maximize your performance in the waves and to be able to ride faster downwind while handling any acceleration. You’ll experience lightning-fast response and tighter turns, while maintaining stability and drive even during the most radical tip breaches or the return from wave leap to base.

This foil glider comes with the SF/370 flat stabilizer, that will allow you to engage waves with extreme maneuverability.

***Parts made of high-modulus carbon are super stiff and high-performing, so they are also very fragile and susceptible to impacts. FOR THIS REASON, THE PIUMA SERIES IS NOT SUITABLE FOR HARD JUMPS AND FREESTYLE, AND ITS USE FOR THESE KINDS OF ACTIVITIES CAN BE DANGEROUS, AND SO NOT ALLOWED OR COVERED BY WARRANTY.

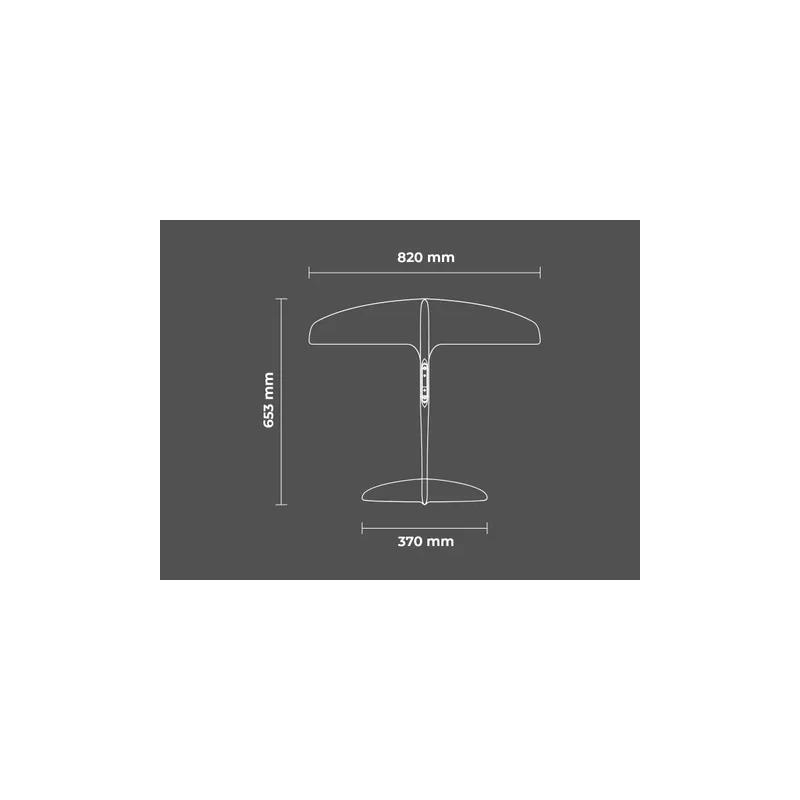

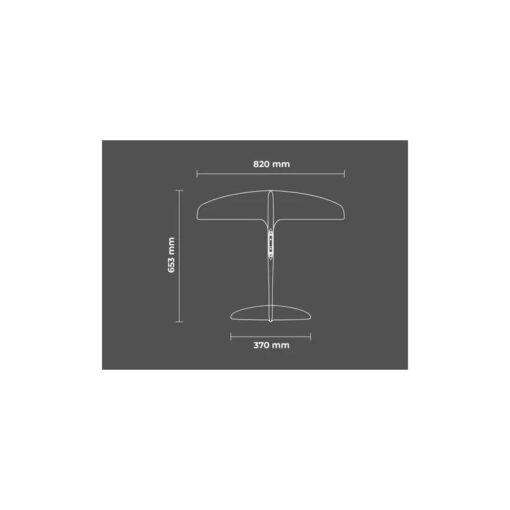

Dimensions & Advanced specs
Front Wing – Span 820 mm
Front Wing – Surface 746 cm2
Front Wing – Volume 665 cm3
Front Wing – Aspect Ratio 8,84
Front Wing – Root Chord 112 mm
Front Wing – Maximum Thickness 16,01 mm
Stabilizer – Span 370 mm
Stabilizer – Surface 195 cm2
Stabilizer – Volume 85 cm3
Stabilizer – Aspect Ratio 7,00
Stabilizer – Root Chord 67,5 mm
Stabilizer – Maximum Thickness 7,3 mm
Fuselage – Length 653 mm
Mast – Height 830 mm
Mast – Board Connection Carbon Plate
Foil Set – Weight (ca.)
Content
Sabfoil Kraken 83 | Hydrofoil Mast x 1
MK/83

Sabfoil Razor PRO 825 | T6 Hydrofoil Front Wing x 1
WRP/825

Sabfoil Flat 370 | Hydrofoil Stabilizer x 1
SF/370

Fuselage 653 T6/R8 x 1
F653K

Sabfoil Carbon Rail Plate with Titanium Inserts x 1
CP02K/Ti

Hardware Kit WR680/780/820/880/980/WRP775/825/875 x 1
MH161

Hardware Kit S330Y/S370/S376/S399/S400/SRD339/SRD379 x 1
MH107

Hardware Kit F603K/F653K/F713K/F1000RD/F1001RD x 1
MH139

Spare Titanium Pin and Shims for Q02K x 1
MHQ02

Foam Pads for Plate x 1
MH144

Allen Keys, Torx Keys and Lithium Grease x 1
MH137

Hardware Kit Carbon Plate to Rail Board x 1
MH160

Shim Set for Fuselages -0,5°/-1°/-1,5°/-2°/-2,5°/-3° x 1
MHW060

Sabfoil Hydrofoil Bag L x 1
MA008
