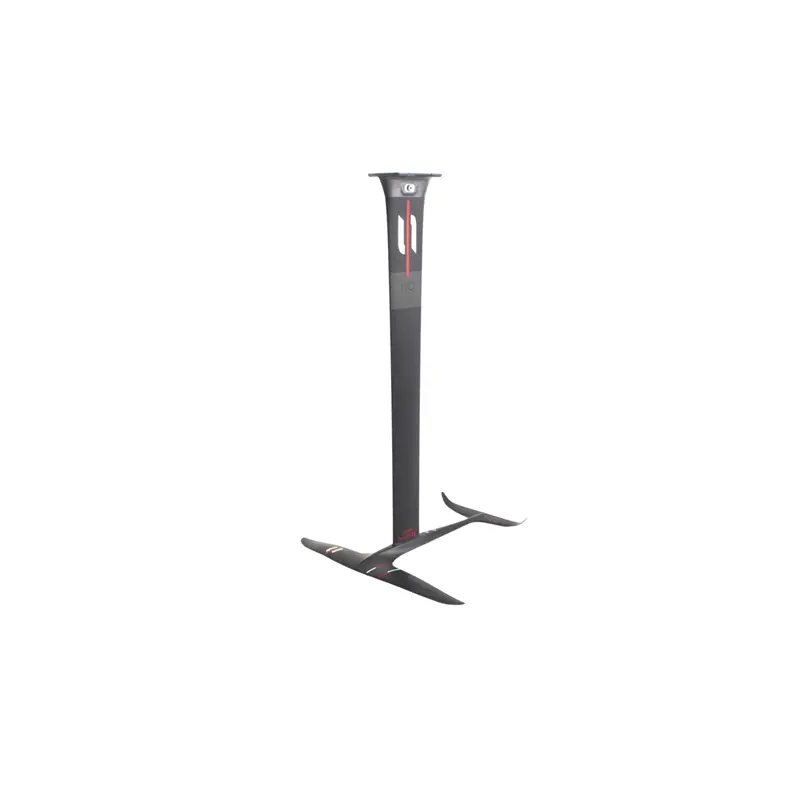

Sabfoil Kit Blackbird Blade 700 – Modular Mast WB700/BB – FC/M – SB/377 – M110/BB Hydrofoil bag included

8050391107569

KB700-FCM-377-110/BB

KITE FOIL
WING FOIL
Blade 700-377-110 Blackbird Kit – Modular Backtail
Blade 700-377-110 Blackbird Glider – Modular Full Carbon Backtail
This set includes the Blackbird front wing Blade 700, the FC/M full carbon modular fuselage and the Blade stabilizer 377, delivering maximum performance and control at high speed. Combined with the Blackbird mast 110.

Complete your set – Get more value

Sabfoil Cover Front Wing A – WB/700-WB671/740-WR680-WRD636/654/704-W670-W695
MA025
€39.99
€24.00

Sabfoil Cover Stabilizer A – ALL the Stabs (ex. S330Y)
MA037
€29.99
€18.00

Sabfoil Cover Mast E – M106/MW107
MA039
€39.99
€24.00
TOP SPEED
LIFT
GLIDE
MANEUVERABILITY
PUMPING
Product Line
Blackbird
Range
Blade
Recommended for
Freeride – Freerace – Race
Take Off Speed
13 – 15 kn
Top End Speed (average 80kg user)
31 – 33 kn
Speed. Efficiency. Total control.
The Blade is a high-performance front wing developed to deliver maximum freerace performance. Optimized for experienced riders, it combines an extremely thin profile with a high aspect ratio, ensuring progressive acceleration, clean glide, and responsiveness even at high speeds.

Suitable for kite foil, wing foil, surf foil, and downwind disciplines, the Blackbird Blade represents the natural evolution of the Blade line, with a design even more focused on speed and efficiency without compromising maneuvering precision.

Cross-discipline performance
The Blade offers a refined and balanced ride, ideal for those who seek a direct feel underfoot in powered conditions. Its geometry favors tight lines, fast carves, and excellent stability under load—while maintaining precise control even in technical transitions.

This set includes the Blackbird front wing Blade 700, the FC/M full carbon modular fuselage and the Blade stabilizer 377, delivering maximum performance and control at high speed. Combined with the Blackbird mast 110, featuring a race profile and ultra-high modulus carbon construction with W-core technology, this setup is built for uncompromising performance.

Blackbird Technology: Built to Perform
Hydrodynamic Efficiency and Drag Reduction The tapered shape and monoblock construction slice through water and air, improving flow and reducing turbulence. This makes transitions, touchdowns, and rail-to-rail maneuvers significantly smoother.

Active Lift and Trim Optimization The wing generates additional lift, enabling earlier take-offs and reducing pressure on the rear stabilizer. The result is a faster, more stable, and balanced ride, even at high speeds.

Extreme Structural Rigidity The fuselage design, inspired by aeronautics, increases torsional stiffness by over 20% compared to cylindrical fuselages. Load distribution is optimized to withstand even the hardest landings or the most aggressive maneuvers.

Full-Carbon Modular Fuselage:

Minimizes flex and torsion.

Allows for testing different stabilizers and perfecting the trim with shims.

Ensures smoother transitions.

Related products

Blackbird Backtail Alu Fuselage – Size L
FBB/L

€139.00

Blackbird Backtail Alu Fuselage – Size M
FBB/M
Out of stock

€139.00

Blackbird Backtail Alu Fuselage – Size S
FBB/S

€139.00
Dimensions & Advanced specs
Front Wing – Span 700 mm
Front Wing – Surface 557 cm2
Front Wing – Aspect Ratio 9,05
Front Wing – Root Chord 104,5 mm
Front Wing – Maximum Thickness 13,15 mm
Stabilizer – Span 377 mm
Stabilizer – Surface 177 cm2
Stabilizer – Aspect Ratio 7,99
Stabilizer – Root Chord 61,5 mm
Stabilizer – Maximum Thickness 7,3 mm
Fuselage – Total Length 630 mm
Mast – Height 1100 mm
Mast – Board Connection Carbon Plate
Foil Set – Weight (ca.) kg
