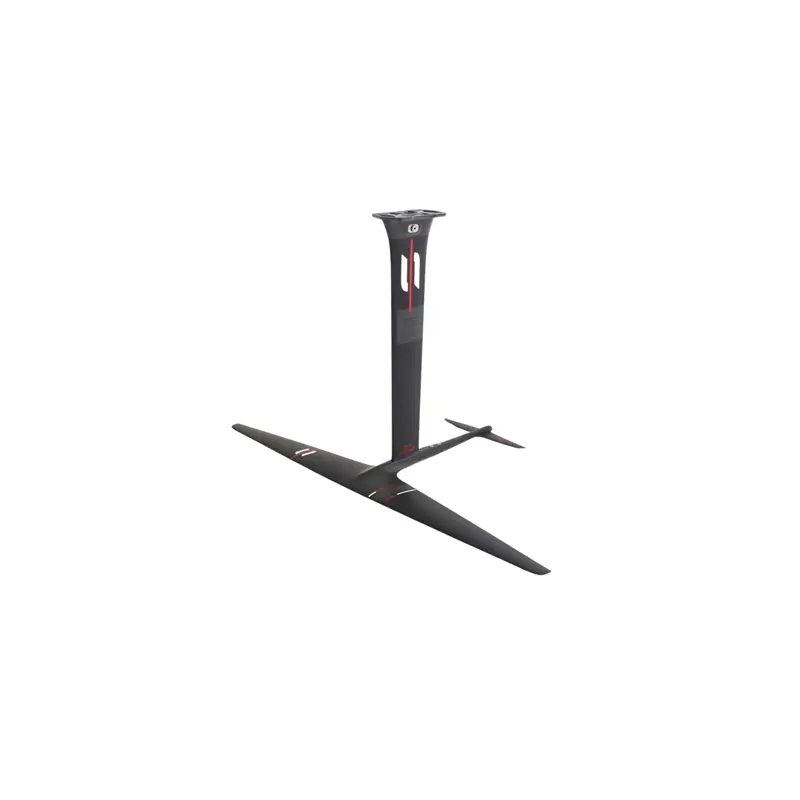

Sabfoil Kit Blackbird Leviathan 1400 – Modular Mast WL1400/BB – FC/M – SDW/375 – M75/BB Hydrofoil bag included

8050391107392

KL1400-FCM-SDW375-75/BB

WING FOIL
SURF FOIL
PUMP FOIL
SUP FOIL
DOWNWIND
Kit Leviathan Blackbird 1400-SDW375-75 – Modular Backtail

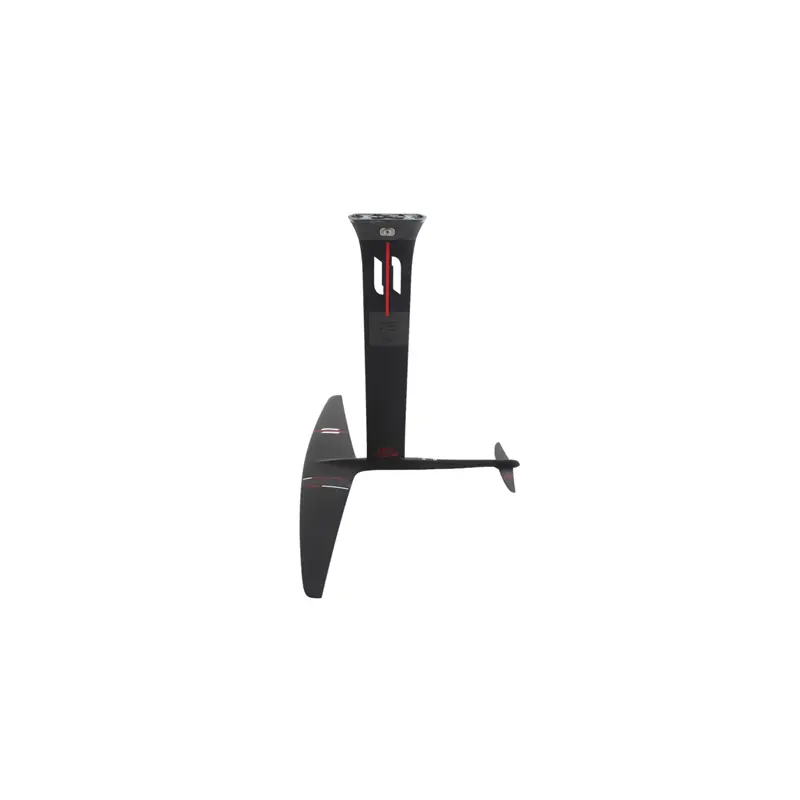

Blackbird Leviathan 1400-FCM-SDW375-75 hydrofoil complete set
Blackbird full carbon set with exceptional glide, unmatched pumpability, and top-tier performance for downwind and prone surf. Smooth, fast, and endlessly efficient.

Complete your set – Get more value

Sabfoil Cover Mast A – M63K/M73K/M73PLK/M75BB/M76
MA021
€39.99
€24.00

Sabfoil Cover Stabilizer A – ALL the Stabs (ex. S330Y)
MA037
€29.99
€18.00
Kit Leviathan Blackbird 1400-SDW375-75 – Modular Backtail specs
TOP SPEED
LIFT
GLIDE
MANEUVERABILITY
PUMPING
Product Line
Blackbird
Recommended for
Freeride – Dock-Start – Downwind – SUP – Pumping
Take Off Speed
7 – 9 kn
Top End Speed (average 80kg user)
16 – 18 kn
Breaking the Resistance of Distance
For the dedicated pump foiler and downwind enthusiast, the enemy isn’t just gravity—it’s drag. Traditional large-surface setups often lack the «legs» to bridge long gaps between swells or the speed to stay locked onto a fast-moving boat wake. To achieve true «infinite glide,» you need a system where every component is tuned to minimize turbulence while maximizing forward momentum. You don’t just want to stay up; you want to travel.

A Synergetic Performance Ecosystem
The Leviathan 1400 Blackbird Glider is a complete high-performance set designed for one purpose: ultra-efficient displacement. At its heart is the WL1400/BB Front Wing, featuring its radical race-inspired profile and the Integrated Active-Lift Fuselage. This design ensures that even a technical, high-speed wing remains accessible during take-off.

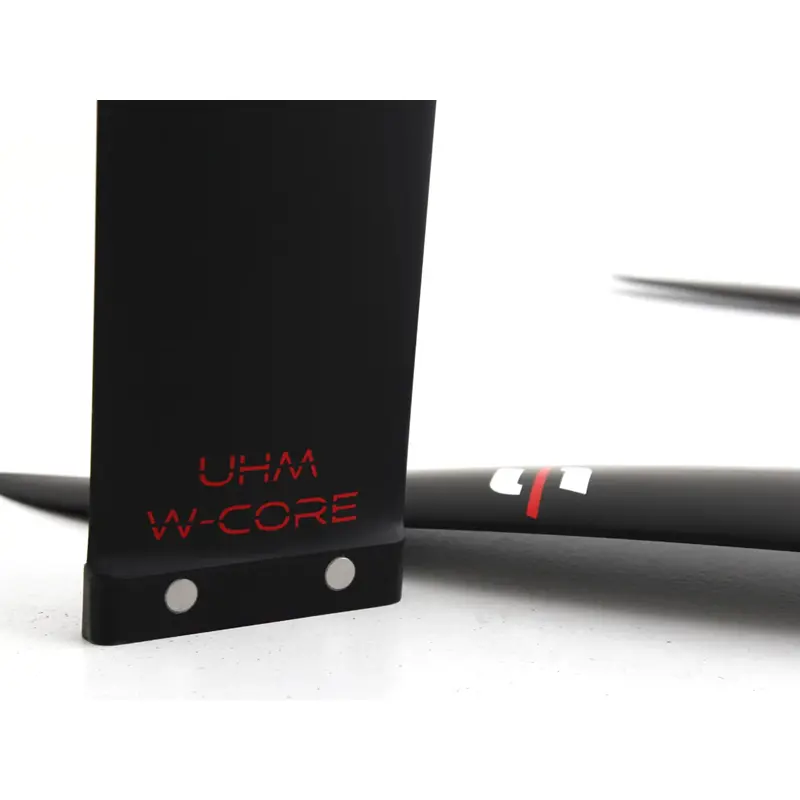

To translate this efficiency into control, the set includes the Modular Carbon Back Tail (FC/M). This full-carbon extension provides the «granitic» torsional stiffness required to handle the massive 1400mm wingspan without unwanted flex. Completing the setup is the SDW375 Stabilizer, specifically engineered for pumping and downwind. Its low-drag geometry offers the perfect balance of pitch stability and yaw freedom, allowing you to «pump» with less vertical oscillation and more horizontal drive. Finally, the M75/BB ultra-high modulus mast with W-Core technology ensures a direct connection between board and hydrofoil for the best performance.

Tech & Feel
WL1400/BB – Radical Glide Engine: The front wing’s extreme aspect ratio and thin profile provide a frictionless sensation. You will feel the foil «slipping» through the water, allowing you to maintain cruise speed with minimal physical input.

Active-Lift Integrated Fuselage: The built-in lifting profile of the front wing’s fuselage makes Dead Starts more consistent. It provides that crucial «pop» off the dock, getting you into the flight zone with less effort while keeping performance.

FC/M Modular Carbon Tail: The full carbon construction ensures immediate power transfer. Every pump is transmitted directly to the wing with zero lag, resulting in a reactive and precise feel underfoot. And you can trim and tune any stabilizer with shims thanks to the modularity!

SDW375 Downwind Stabilizer: Specifically made for efficiency. It offers long-range stability in downwind conditions while remaining small enough to stay out of the way during high-cadence pumping.

Surgical Maneuverability: Despite the impressive wingspan, the combination of the refined wingtips and the optimized stabilizer allows for fluid transitions and carving, making it easy to stay in the «power zone» of a wake.

The Design Philosophy
The Leviathan 1400 Glider set is the bridge between technical racing hydrodynamics and the soul of surfing. We have taken our most advanced carbon technologies and combined them into a package that turns every body of water into an infinite playground. It is a high-performance tool for the rider who views foiling as a journey, not just a sport.

Related products

Blackbird Backtail Alu Fuselage – Size S
FBB/S

€139.00
Dimensions & Advanced specs

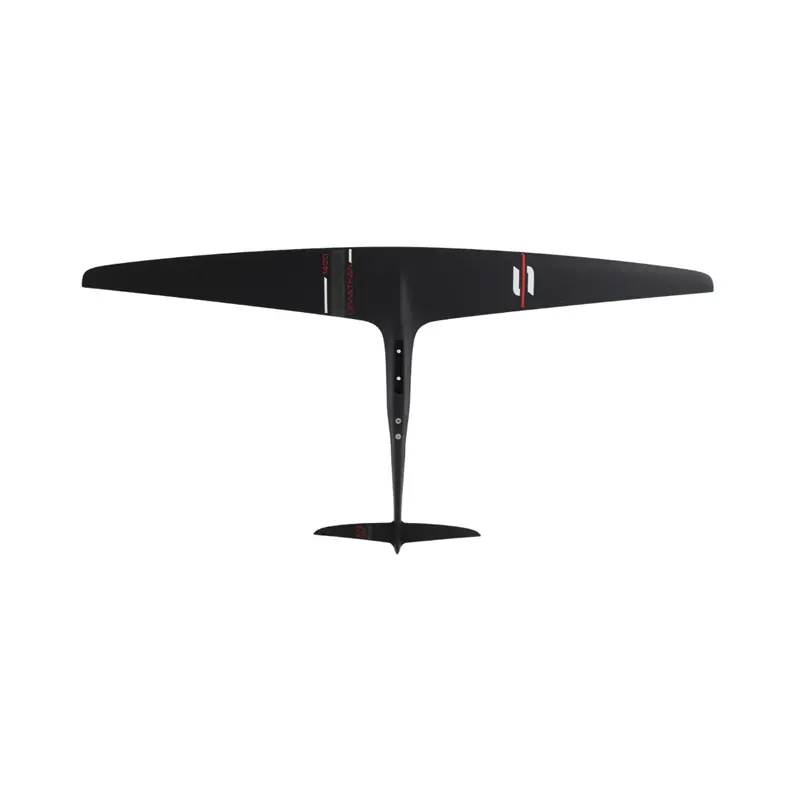

Front Wing – Span 1380 mm
Front Wing – Surface 1549 cm2
Front Wing – Aspect Ratio 12,3
Front Wing – Root Chord 173 mm
Front Wing – Maximum Thickness 18 mm
Stabilizer – Span 375 mm
Stabilizer – Surface 130 cm2
Stabilizer – Aspect Ratio 10,4
Stabilizer – Root Chord 50 mm
Stabilizer – Maximum Thickness 7,7 mm
Fuselage – Total Length 675 mm
Mast – Height 750 mm
Mast – Board Connection Carbon Plate
Foil Set – Weight (ca.) 4,5 kg
