Sabfoil Kit Leviathan 950-703-425/73

SABFOIL-25-105

WING FOIL
DOWNWIND
Foil Set Leviathan Easy-Riding 950-703-425/73

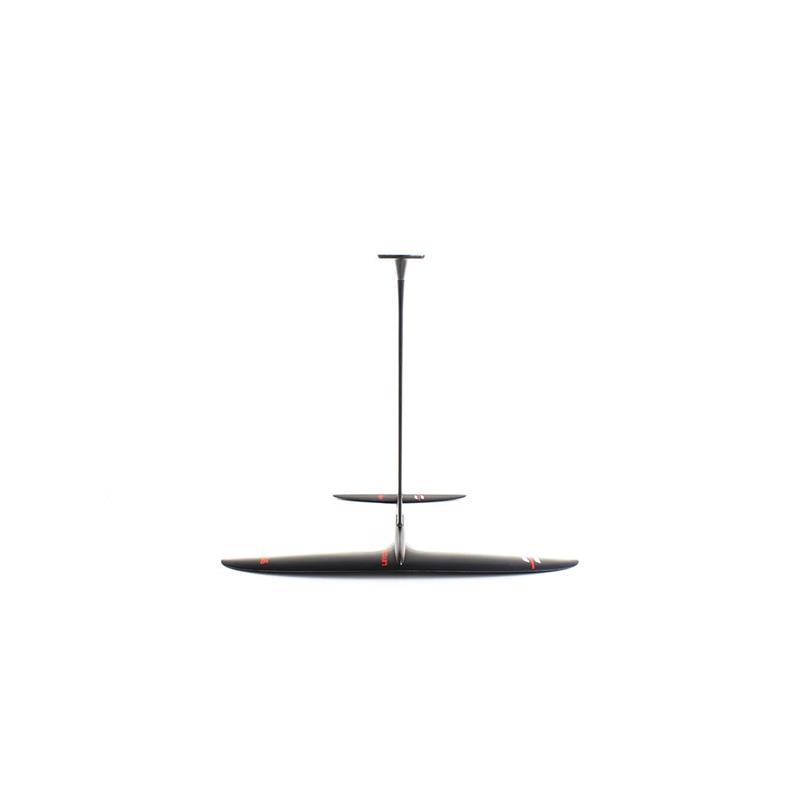

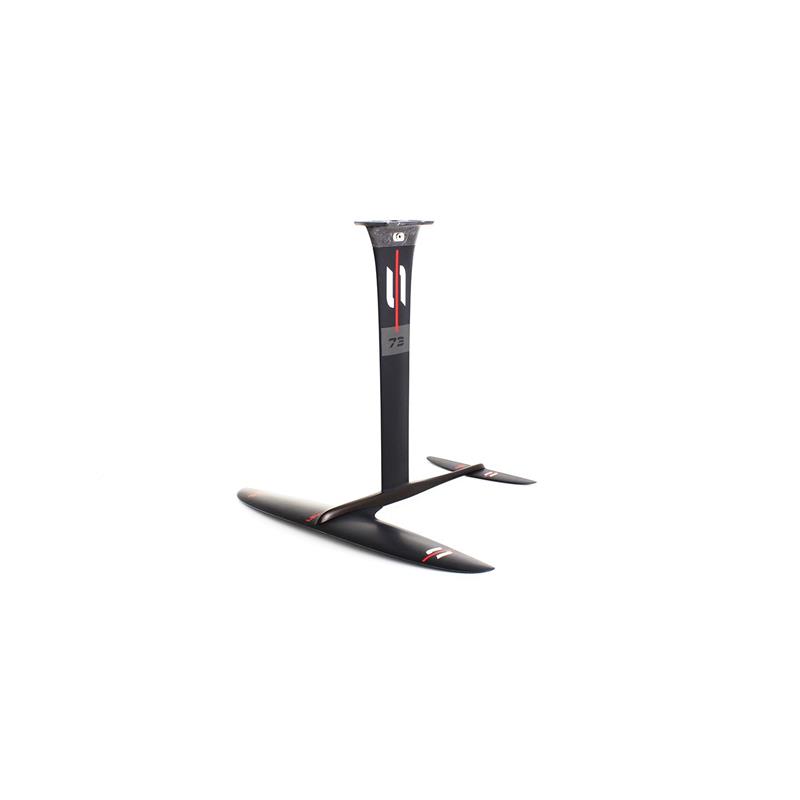

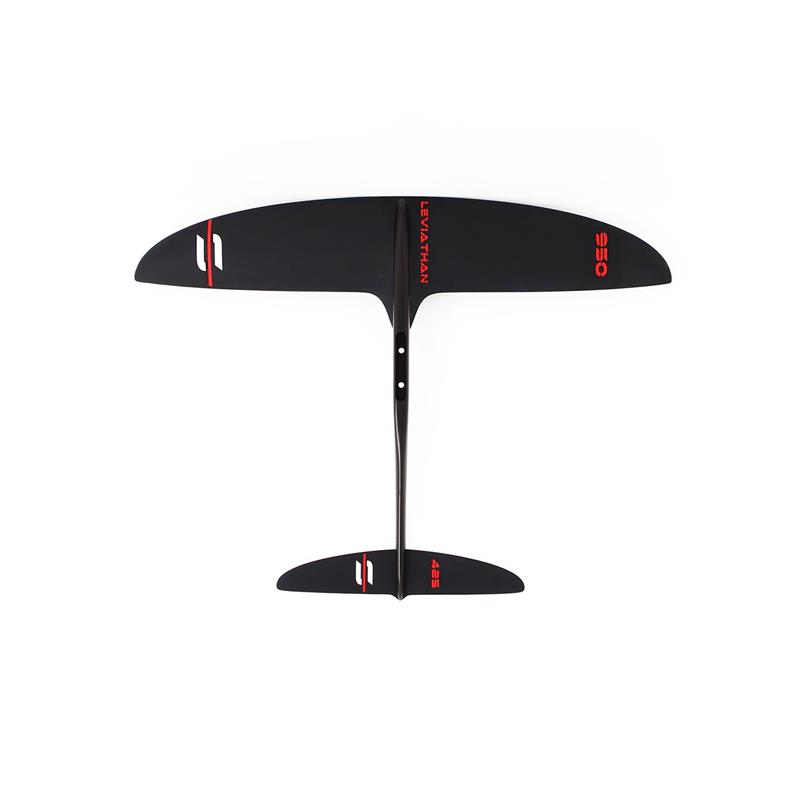

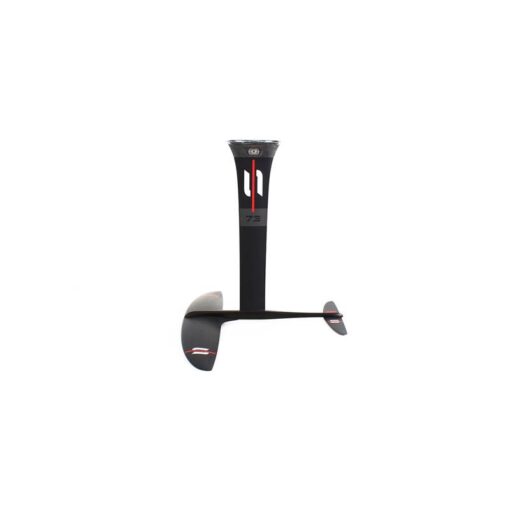

Sabfoil Leviathan Easy-Riding hydrofoil set
MK/73 – WL/950 – SF/425 – F703K

Bag and Q02K included

Range
Leviathan
Recommended for
Downwind – Easy Riding – Freeride
Take Off Speed
10 – 12 kn
Top End Speed (average 80kg user)
19 – 21 kn
This hydrofoil set is a reliable and versatile choice for those who want to practice wingfoil, both downwind and freeride, in light winds and low swells. It is also ideal for novice riders or those who simply want to enjoy a leisurely ride.

The front wing (WL/950) has a medium-high AR, which results in good glide ability and efficiency, and the dedicated profile ensures easy starts while still maintaining good top speed. The mast (MK/73) has a balanced profile, providing a smooth ride without sacrificing stiffness. The flat shape stabilizer (SF/425) provides optimal control without sacrificing maneuverability.

Bag and Titanium Quick Release System (Q02K) included.

Dimensions & Advanced specs
Front Wing – Span 950 mm
Front Wing – Surface 1300 cm2
Front Wing – Volume 1728 cm3
Front Wing – Aspect Ratio 6,68
Front Wing – Root Chord 170 mm
Front Wing – Maximum Thickness 22,9 mm
Stabilizer – Span 430 mm
Stabilizer – Surface 240 cm2
Stabilizer – Volume 102 cm3
Stabilizer – Aspect Ratio 7,70
Stabilizer – Root Chord 68 mm
Stabilizer – Maximum Thickness 7,5 mm
Fuselage – Length 703 mm
Mast – Height 730 mm
Mast – Board Connection Carbon Plate
Foil Set – Weight (ca.) 4,26 kg
Content

Sabfoil Kraken 73 | Hydrofoil Mast x 1
MK/73

Sabfoil Leviathan 950 | T8 Hydrofoil Front Wing x 1
WL/950

Sabfoil Flat 425 | Hydrofoil Stabilizer x 1
SF/425

Fuselage 703 T8/R8 x 1
F703K

Sabfoil Carbon Rail Plate with Titanium Inserts x 1
CP02K/Ti

Hardware Kit WL950/WL1150/WL1350/WL1550/WL1750/WM999 x 1
MH163

Hardware Kit S325/S355/S375/S380/S395/S425/S430/S450/S480/S483 x 1
MH108

Hardware Kit F663K/F703K/F753K/F903K/F1003K x 1
MH138

Spare Titanium Pin and Shims for Q02K x 1
MHQ02

Foam Pads for Plate x 1
MH144

Allen Keys, Torx Keys and Lithium Grease x 1
MH137

Hardware Kit Carbon Plate to Rail Board x 1
MH160

Shim Set for Fuselages -0,5°/-1°/-1,5°/-2°/-2,5°/-3° x 1
MHW060

Sabfoil Hydrofoil Bag L x 1
MA008

Range
Leviathan
Recommended for
Downwind – Easy Riding – Freeride
Take Off Speed
10 – 12 kn
Top End Speed (average 80kg user)
19 – 21 kn
