Sabfoil Kit Medusa 799-703-395/93MK/93 – WM/799 – F703K – SR/395 – CP02K/Ti

SABFOIL-25-136

WING FOIL
Foil Set Medusa 799-703-395/93

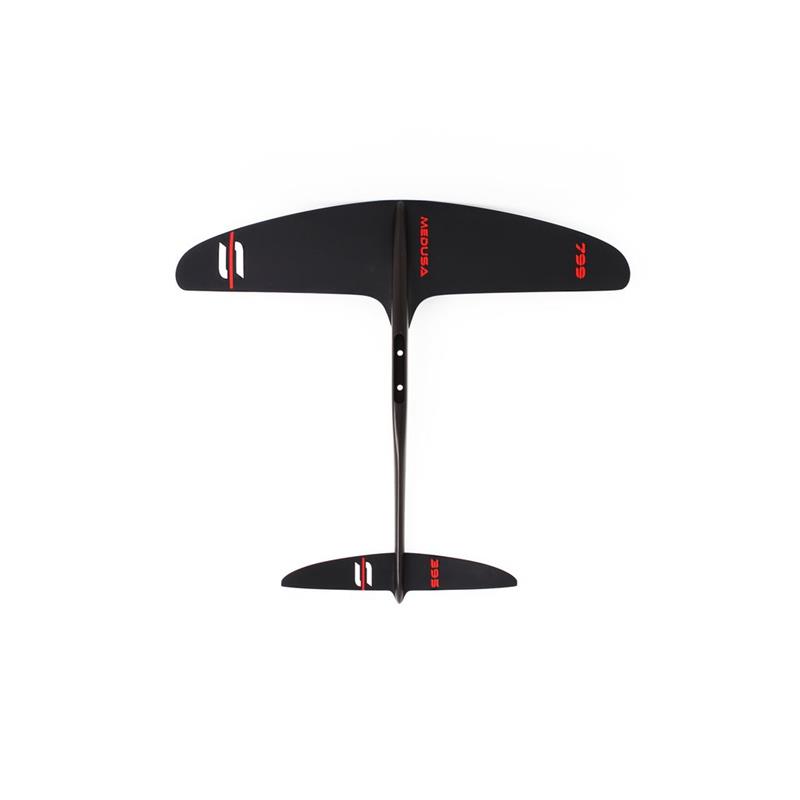

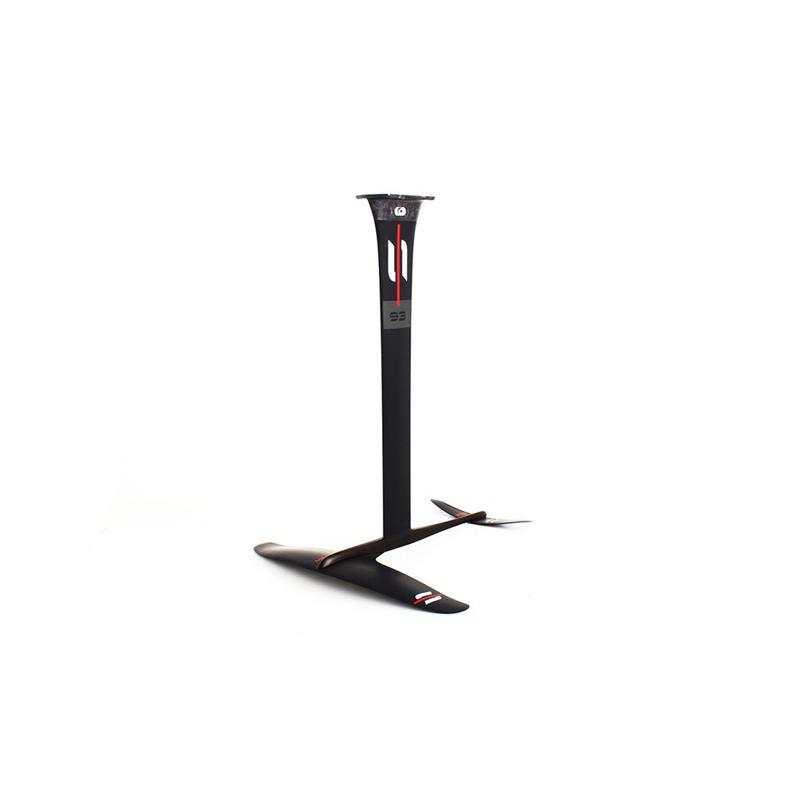

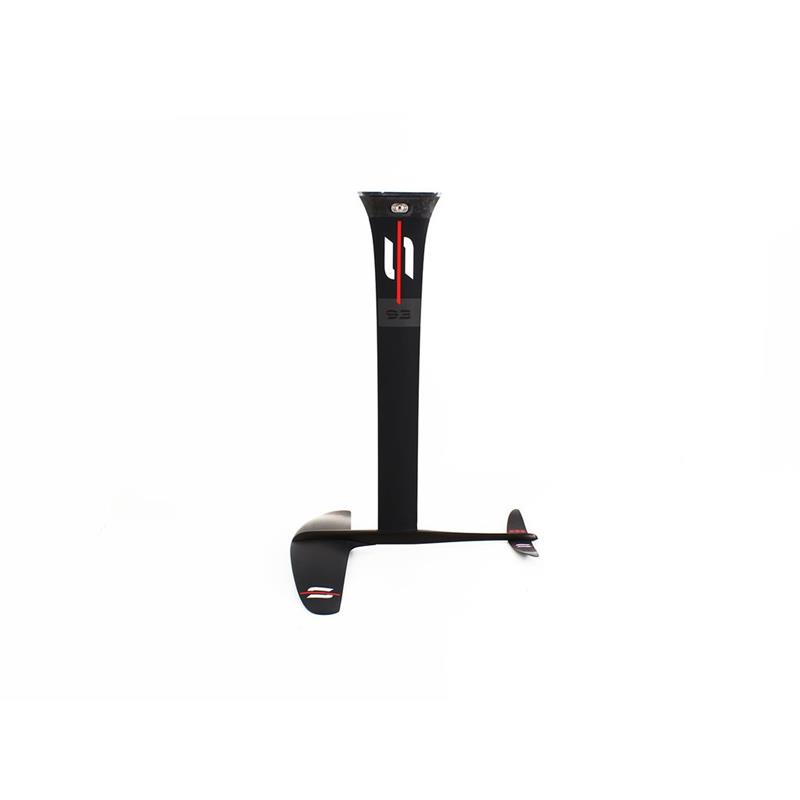

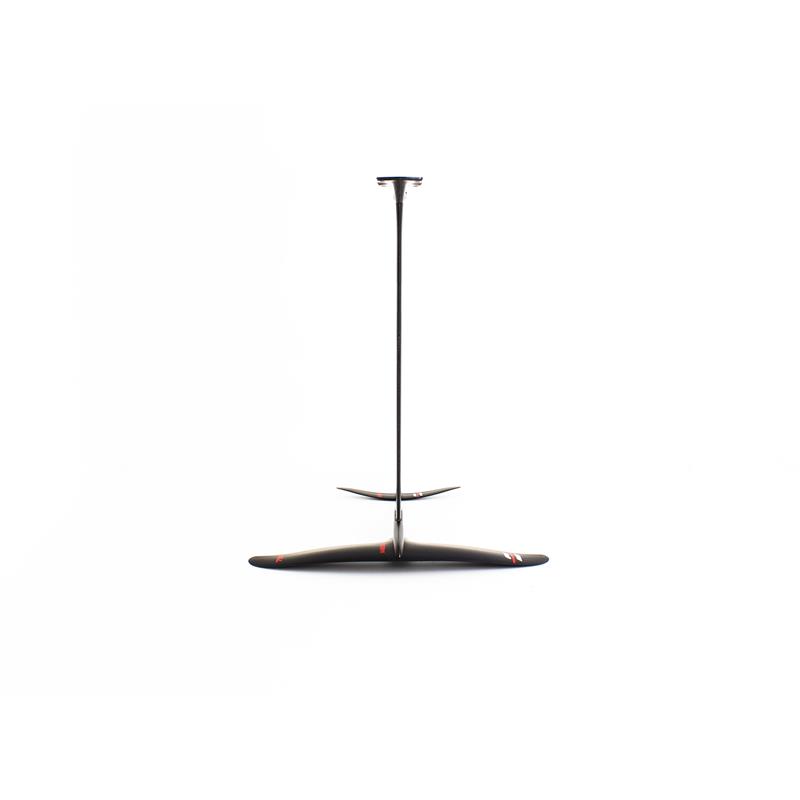

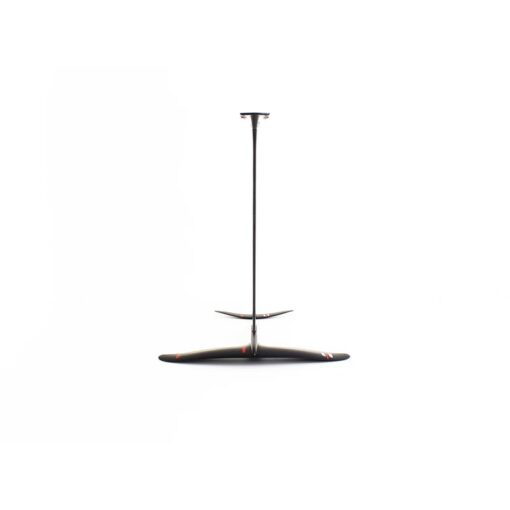

Sabfoil Medusa hydrofoil set

MK/93 – WM/799- SR/395- F703K – CP02K/Ti

Bag and Q02K included

Range Medusa
Recommended for Freeride – Freestyle – Wave
Take Off Speed 13 – 15 kn
Top End Speed (average 80kg user) 22 – 24 kn

This hydrofoil set is designed for wingfoiling in medium-strong wind conditions and it’s an excellent choice for starting your freestyle experience, but it also gives great satisfaction in wave and freeride sessions.

The front wing (WM/799) has been designed in collaboration with the pro rider Balz Muller and features a medium aspect ratio and compact size, providing incredible agility and maneuverability. The relatively high profile of the wing ensures a very good lift, making it easy to take off after an air maneuver. The mast (MK/93) has a balanced profile, providing a smooth ride without sacrificing stiffness. The reverse stabilizer (SR/395) provides excellent performance in terms of speed and directionality, without sacrificing maneuverability.

Bag and Titanium Quick Release System (Q02K) included

Dimensions & Advanced specs
Front Wing – Span 799 mm
Front Wing – Surface 1100 cm2
Front Wing – Volume 1174 cm3
Front Wing – Aspect Ratio 5,80
Front Wing – Root Chord 170 mm
Front Wing – Maximum Thickness 21,6 mm
Stabilizer – Span 400 mm
Stabilizer – Surface 198 cm2
Stabilizer – Volume 87 cm3
Stabilizer – Aspect Ratio 8,08
Stabilizer – Root Chord 64,96 mm
Stabilizer – Maximum Thickness 7,21 mm
Fuselage – Length 703 mm
Mast – Height 930 mm
Mast – Board Connection Carbon Plate
Foil Set – Weight (ca.) 4,22 kg
Content
Sabfoil Kraken 93 | Hydrofoil Mast x 1
MK/93

Sabfoil Medusa 799 | T8 Hydrofoil Front Wing x 1
WM/799

Sabfoil Reverse 395 | Hydrofoil Stabilizer x 1
SR/395

Fuselage 703 T8/R8 x 1
F703K

Sabfoil Carbon Rail Plate with Titanium Inserts x 1
CP02K/Ti

Hardware Kit WT790/WT1100/WT1250/WM699/WM799 x 1
MH134

Hardware Kit S325/S355/S375/S380/S395/S425/S430/S450/S480/S483 x 1
MH108

Hardware Kit F663K/F703K/F753K/F903K/F1003K x 1
MH138

Spare Titanium Pin and Shims for Q02K x 1
MHQ02

Foam Pads for Plate x 1
MH144

Allen Keys, Torx Keys and Lithium Grease x 1
MH137

Hardware Kit Carbon Plate to Rail Board x 1
MH160

Shim Set for Fuselages -0,5°/-1°/-1,5°/-2°/-2,5°/-3° x 1
MHW060

Sabfoil Hydrofoil Bag L x 1
MA008

Range Medusa
Recommended for Freeride – Freestyle – Wave
Take Off Speed 13 – 15 kn
Top End Speed (average 80kg user) 22 – 24 kn
