Kit Razor 83780
COMPOSITION
M83K – WR780 – S380 – F713K
Bag and Q01K included
Range Razor

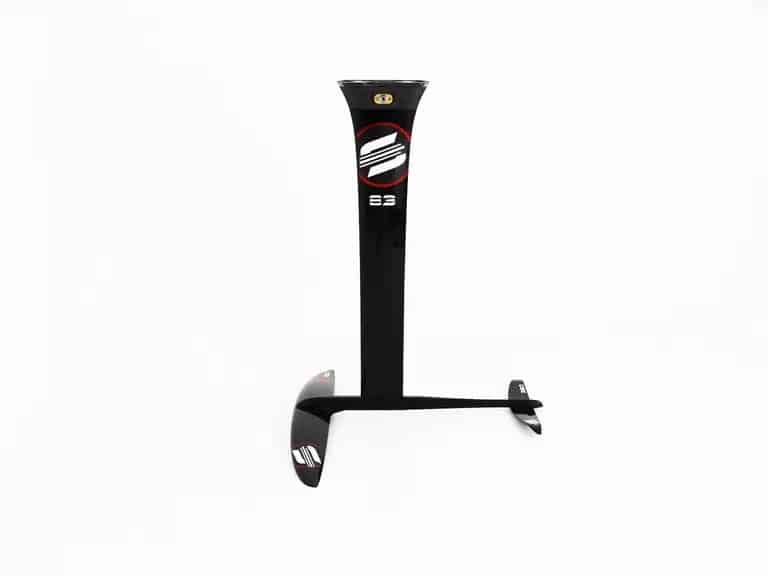

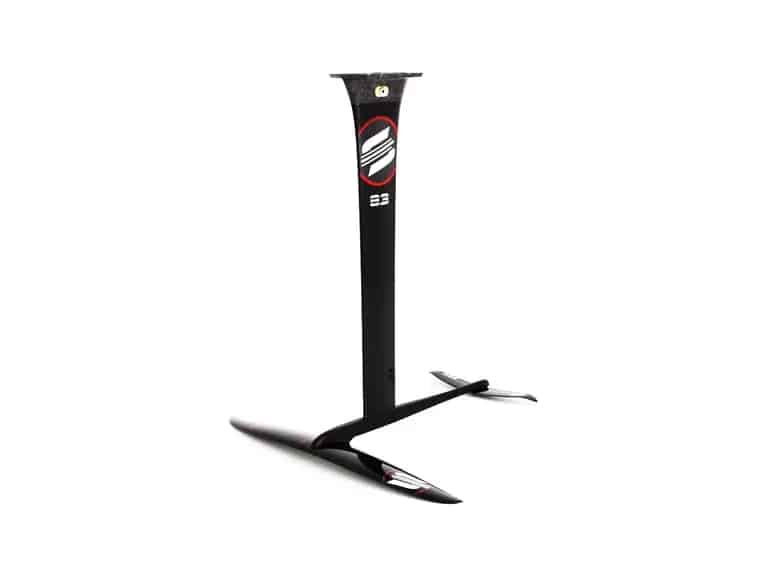

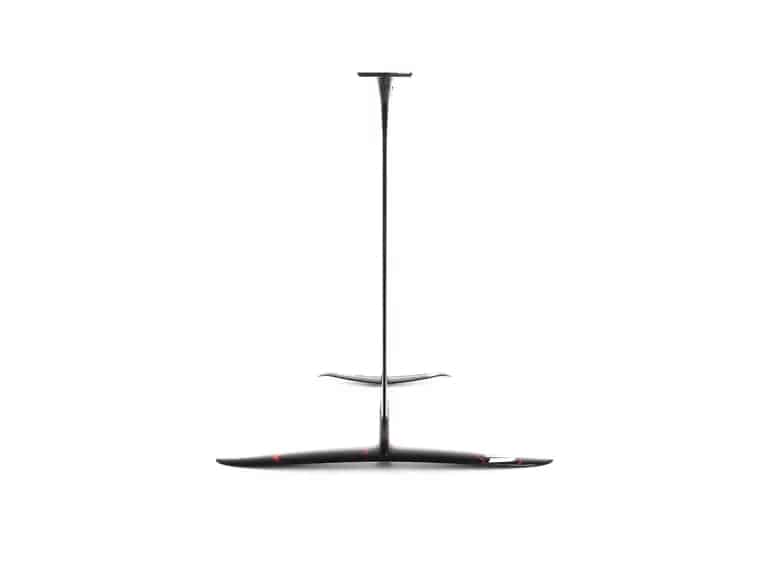

The Razor 83780 hydrofoil kit is an excellent choice for downwind riding in medium wind conditions.
The front wing (WR780) features a high aspect ratio and dedicated profile for exceptional gliding efficiency. It is also easy to pump to transition from wave to wave. The broad speed range allows for early take-off, ensuring a lot of fun for riders of all levels. The mast (M83K) has a balanced profile, providing a smooth and fast ride without sacrificing stiffness. The gullwing shape stabilizer (S380) provides excellent control and allows for easy pumping when needed.
Whether you’re a beginner or an experienced rider, this hydrofoil kit will surely provide a thrilling and enjoyable experience on the water.

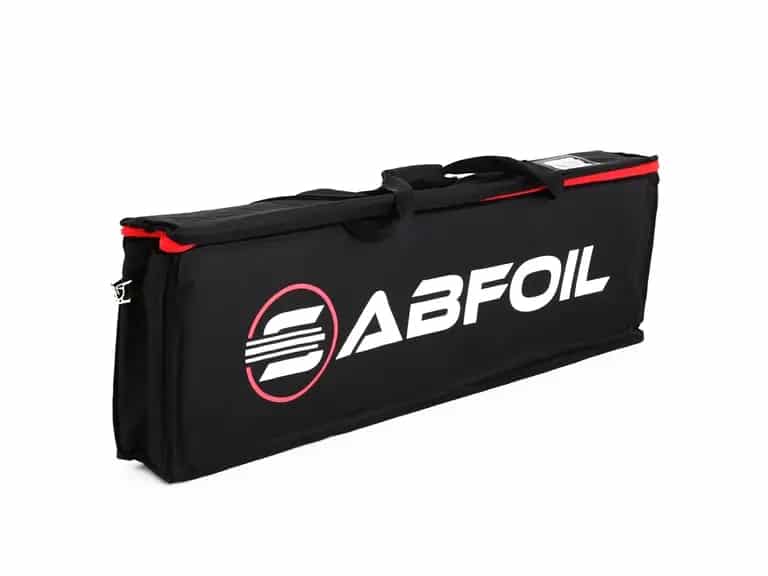

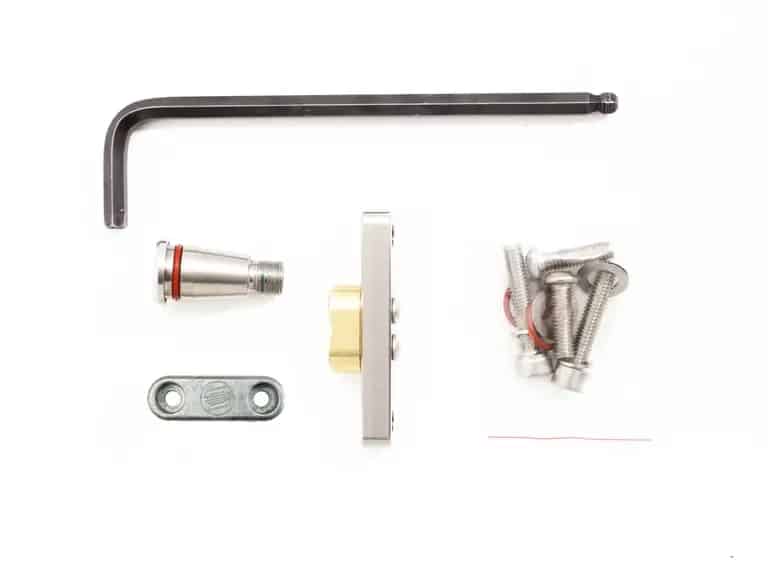

Bag and Quick Release System (Q01K) included
| Front Wing – Span | 780 mm |
|---|---|
| Front Wing – Surface | 631 cm2 |
| Front Wing – Volume | 546 cm3 |
| Front Wing – Aspect Ratio | 9,64 |
| Front Wing – Root Chord | 100 mm |
| Front Wing – Maximum Thickness | 15,3 mm |
| Stabilizer – Span | 380 mm |
| Stabilizer – Surface | 180 cm2 |
| Stabilizer – Volume | 73 cm3 |
| Stabilizer – Aspect Ratio | 8,10 |
| Stabilizer – Root Chord | 60,1 mm |
| Stabilizer – Maximum Thickness | 6,7 mm |
| Fuselage – Length | 713 mm |
| Mast – Height | 830 mm |
| Mast – Board Connection | Carbon Plate |
| Foil Set – Weight (ca.) | 3,5 kg |
