Sabfoil Kit Razor PRO 875-653-370/84RDMK/84RD – WRP/875 – F653K – SF/370 – CP02K/Ti

SABFOIL-25-179

WING FOIL
SURF FOIL
DOWNWIND
Foil Set Razor PRO 875-653-370/84RD

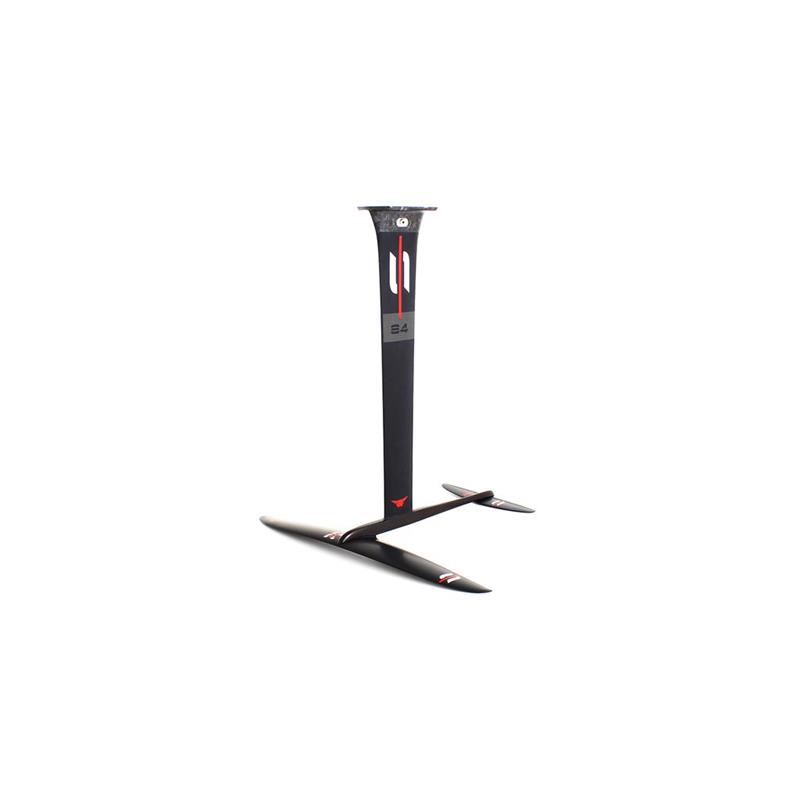

Sabfoil Razor PRO hydrofoil set

MK/84RD – WRP/875- SF/370 – F653K – CP02K/Ti

Bag and Q02K included

Range Razor PRO
Recommended for Downwind – Fast Downwind – Freeride – Prone Surf – Surf – Wave – Fast Freeride
Take Off Speed 13 – 15 kn
Top End Speed (average 80kg user) 22 – 24 kn

The KRP/875-653-370/84RD is a very versatile surf foil kit that is perfect for medium to low wave conditions, but still maintains a high level of performance while also facilitating pumping when needed.

The Razor PRO 875 front wing is designed to maximize your performance in the waves and to be able to ride faster downwind while handling any acceleration. You’ll experience lightning-fast response and tighter turns, while maintaining stability and drive even during the most radical tip breaches or the return from wave lip to base.

Red Devil masts result from many hours of prototyping which will boost your performance to the highest possible level in any field of use. Designed to minimize drag while having the best ratio stiffness/torsion/weight in our line, the Piuma mast is a unique blend of unidirectional, plain, and multiaxial high-modulus carbon fiber of different weights combined with an extremely light core.

This foil set comes with the SF/370 flat stabilizer, that will allow you to engage waves with extreme maneuverability.

***Parts made of high-modulus carbon are super stiff and high-performing, so they are also very fragile and susceptible to impacts. FOR THIS REASON, THE PIUMA SERIES IS NOT SUITABLE FOR HARD JUMPS AND FREESTYLE, AND ITS USE FOR THESE KINDS OF ACTIVITIES CAN BE DANGEROUS, AND SO NOT ALLOWED OR COVERED BY WARRANTY.

Dimensions & Advanced specs

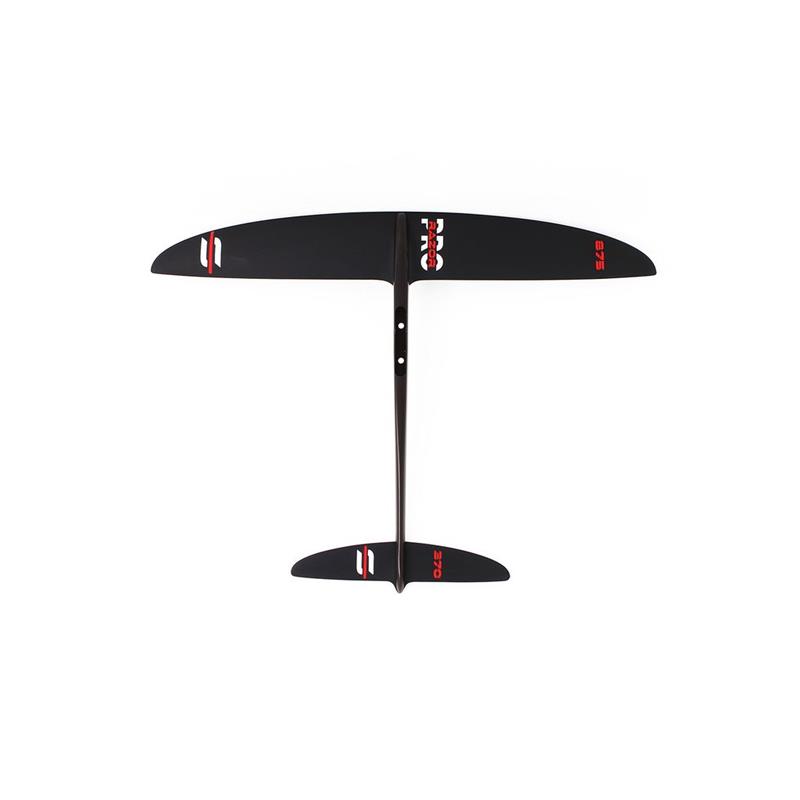

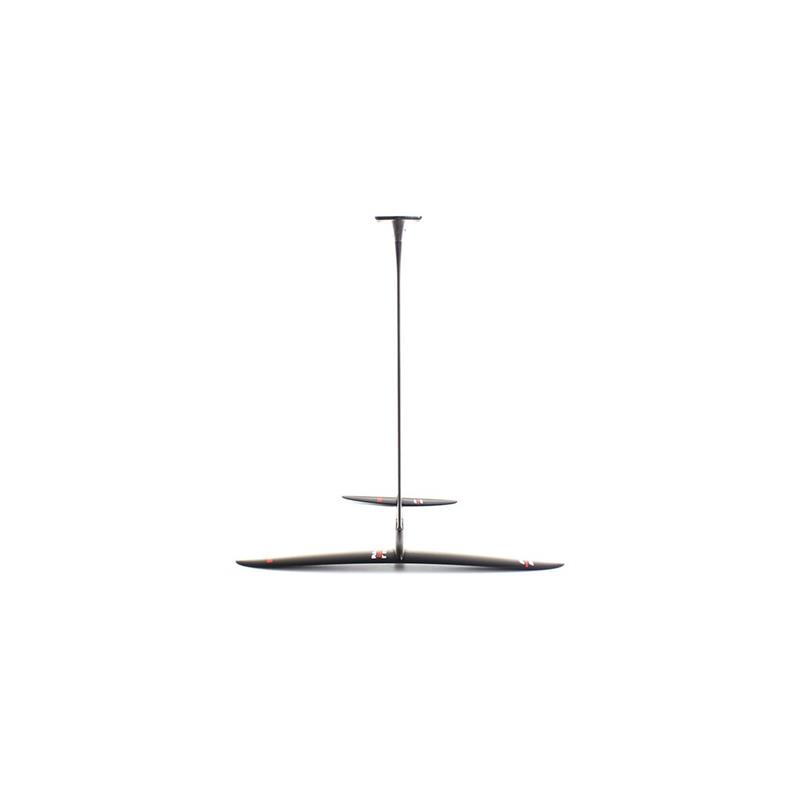

Front Wing – Span 880 mm
Front Wing – Surface 843 cm2
Front Wing – Volume 775 cm3
Front Wing – Aspect Ratio 9,20
Front Wing – Root Chord 118 mm
Front Wing – Maximum Thickness 16,77 mm
Stabilizer – Span 370 mm
Stabilizer – Surface 195 cm2
Stabilizer – Volume 85 cm3
Stabilizer – Aspect Ratio 7,00
Stabilizer – Root Chord 67,5 mm
Stabilizer – Maximum Thickness 7,3 mm
Fuselage – Length 653 mm

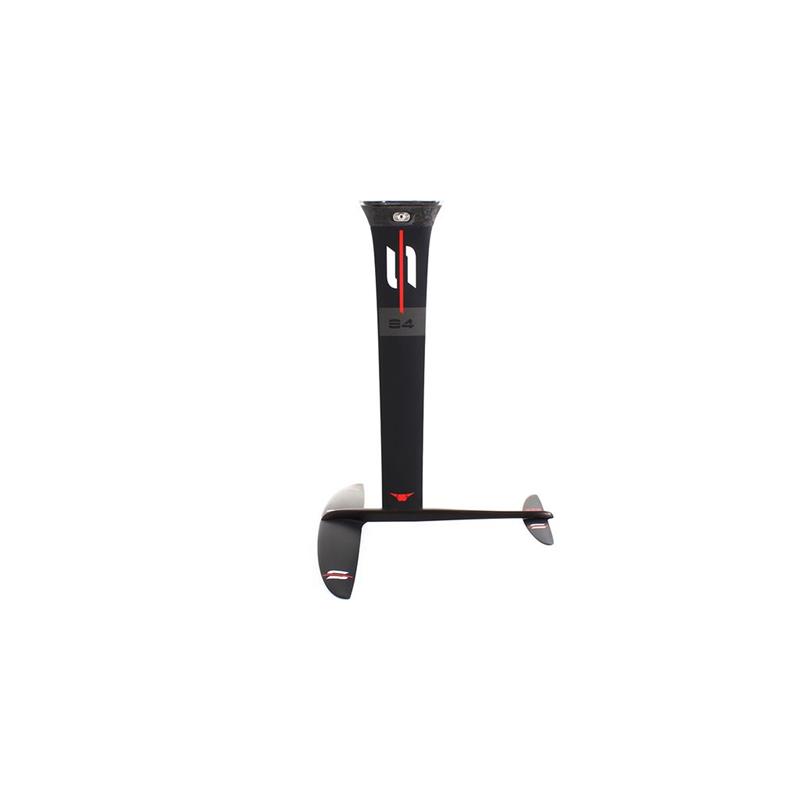

Mast – Height 840 mm
Mast – Board Connection Carbon Plate
Foil Set – Weight (ca.)
Content
Sabfoil Kraken 84 Red Devil | Hydrofoil Mast x 1
MK/84RD

Sabfoil Razor PRO 875 | T6 Hydrofoil Front Wing x 1
WRP/875

Sabfoil Flat 370 | Hydrofoil Stabilizer x 1
SF/370

Fuselage 653 T6/R8 x 1
F653K

Sabfoil Carbon Rail Plate with Titanium Inserts x 1
CP02K/Ti

Hardware Kit WR680/780/820/880/980/WRP775/825/875 x 1
MH161

Hardware Kit S330Y/S370/S376/S399/S400/SRD339/SRD379 x 1
MH107

Hardware Kit F603K/F653K/F713K/F1000RD/F1001RD x 1
MH139

Spare Titanium Pin and Shims for Q02K x 1
MHQ02

Foam Pads for Plate x 1
MH144

Allen Keys, Torx Keys and Lithium Grease x 1
MH137

Hardware Kit Carbon Plate to Rail Board x 1
MH160

Shim Set for Fuselages -0,5°/-1°/-1,5°/-2°/-2,5°/-3° x 1
MHW060

Sabfoil Hydrofoil Bag L x 1
MA008
