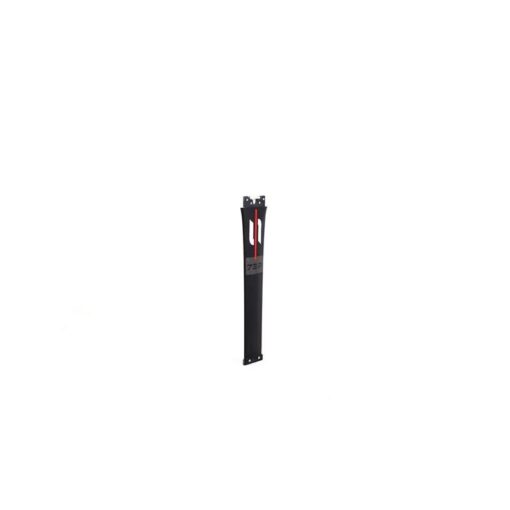

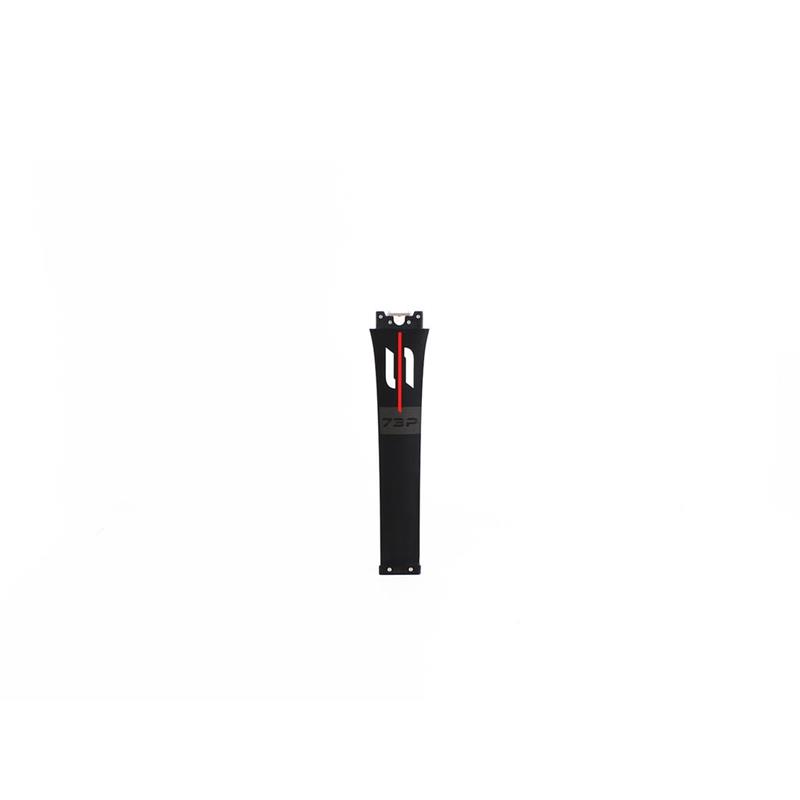

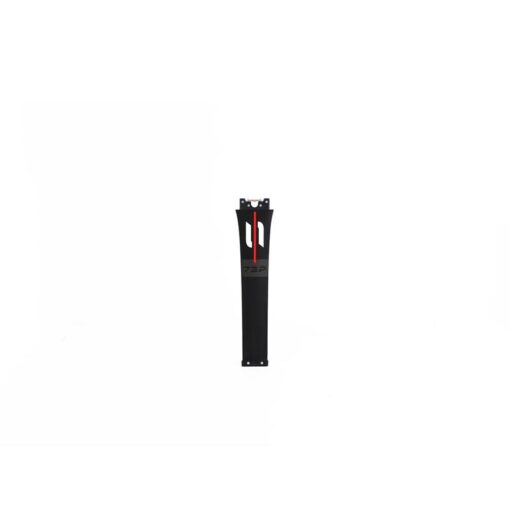

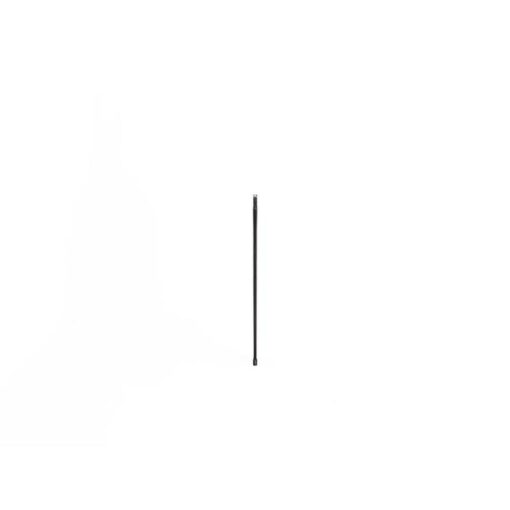

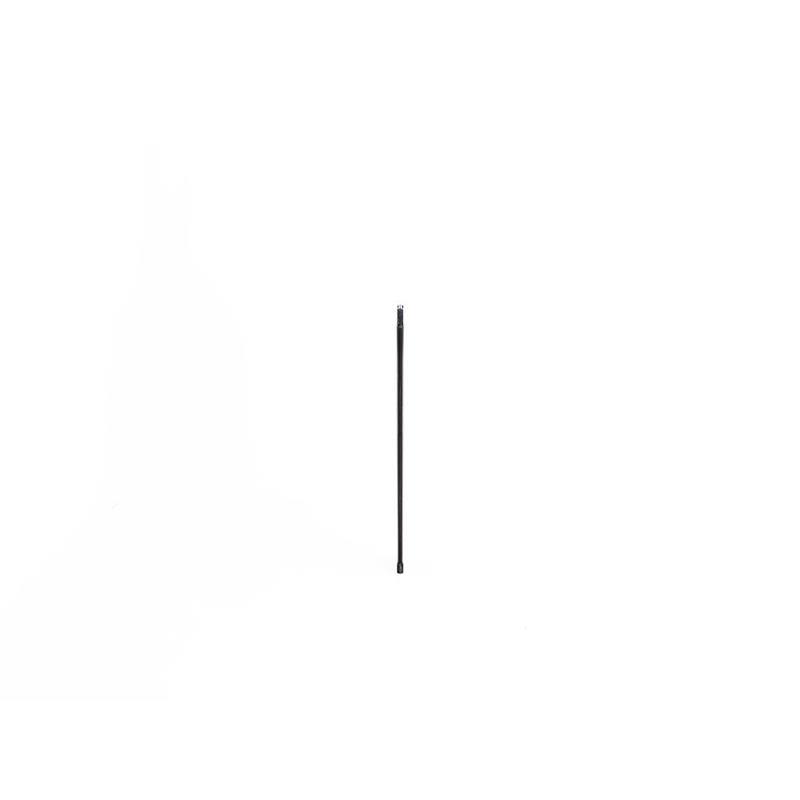

Sabfoil Kraken 73P | Hydrofoil Mast
MAIN SPECS

Full Carbon (with core)

Conn. System: R8

Height: 730 mm
Sabfoil Kraken 73P | Hydrofoil Mast specs
BENDING STIFFNESS
TORSIONAL STIFFNESS
SPEED
REACTIVITY
Recommended for SUP – Dock-Start – Freeride – Pumping – Easy Riding
System Kraken Modular System
Mast-Fuselage Connection R8
Material Carbon (with core)
Range Pump Line

The thick profile of this 73 cm-long carbon mast has been optimized to have maximum stiffness and great performance in pump foiling. This mast is very versatile and even if its speed is not the greatest, it can be used for many disciplines and activities. Design, selected materials, and their use make this mast robust and performing.

The Kraken Modular System makes this mast compatible with all fuselages belonging to the same SABFOIL range and allows you to choose the connection system to the board between Plate and Tuttle.

The MK/73P is hand sanded to achieve a matte surface with 0-thickness graphics, the SAB Pro Finish, for an elegant Made in Italy product with maximum performance.

All Sabfoil masts are equipped with the titanium module required to use our Quick Release System. Therefore, to upgrade your mast simply add item MHQ02 to your cart.

Dimensions & Advanced specs
Mast – Height
730 mm
Mast – Thickness A
22,1 mm
Mast – Thickness B
20,1 mm
Mast – Thickness C
18,0 mm
Mast – Chord A
137,8 mm
Mast – Chord B
116,8 mm
Mast – Chord C
110,8 mm
Mast – Weight (ca.)
1420 g
Mast – Material
Full Carbon (with core)
Mast – Fuselage Connection Type
R8
Content
Sabfoil Kraken 73P | Hydrofoil Mast x 1
MK/73P

Titanium Quick Release Module x 1
