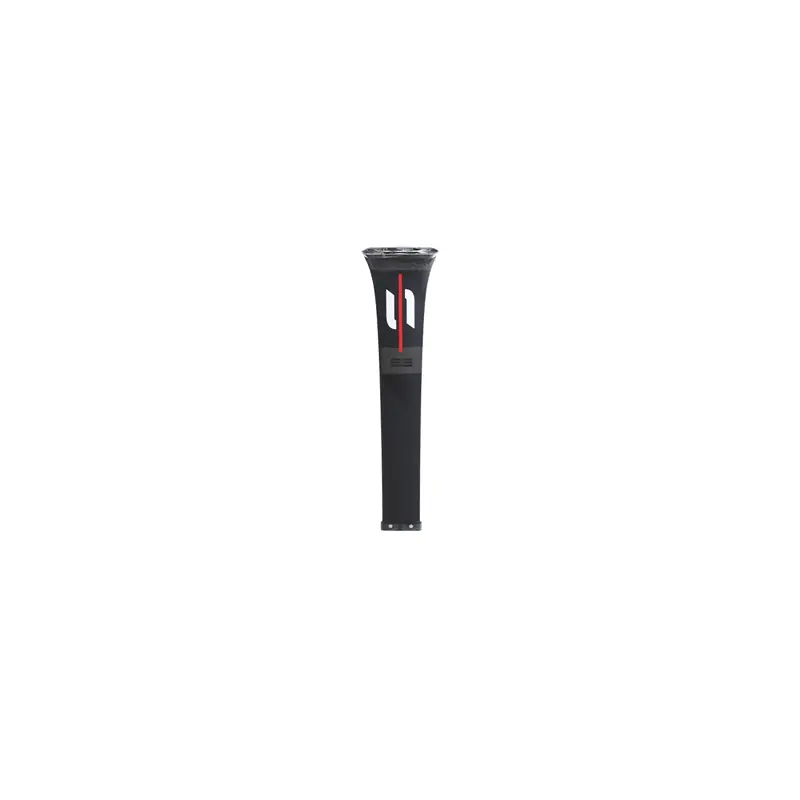

Sabfoil Mast Kraken 83 INTEGRATED Fuselage Connection: R8

MK/83-INT

MK/83-INT

KITE FOIL
WING FOIL
WIND FOIL
SURF FOIL
SUP FOIL
DOWNWIND
Mast Kraken 83 | Integrated System Sabfoil
MAIN SPECS
Integrated System

Full Carbon

Conn. System: R8

Height: 830 mm

BENDING STIFFNESS
TORSIONAL STIFFNESS
SPEED
REACTIVITY
Recommended for
Wave – Downwind – Freeride – Freestyle – SUP – Surf – Easy Riding
System
Integrated System
Mast-Fuselage Connection
R8
Material
Carbon (with core)
Range
Kraken
The profile of this 83 cm-long carbon mast has been optimized to have the maximum transversality between different disciplines. With this mast, you will be able to practice Wing-Foil, Surf-Foil, Kite-Foil, and Wind-Foil at maximum performance. Design, selected materials, and their use make this mast robust and performing, ideal for both speed and freestyle.

The MK/83 Integrated combines the proven performance of our Kraken mast with the new SABFOIL Integrated System.

Thanks to an advanced carbon lamination process, the mast and plate become a true one-piece structure, reducing weight while increasing overall stiffness and responsiveness.

The result is an even more direct connection between rider and foil, without changing the ride characteristics that have made the MK/83 one of the most appreciated masts in the SABFOIL range.

Related products

Sabfoil Cover Mast B – M83K/M83PLK/M75BB/M86
MA022

€39.99
Dimensions & Advanced specs
Mast – Height
830 mm
Mast – Thickness A
18,6 mm
Mast – Thickness B
15,5 mm
Mast – Thickness C
13,9 mm
Mast – Chord A
137,8 mm
Mast – Chord B
113,8 mm
Mast – Chord C
110,8 mm
Mast – Weight (ca.)
g
Mast – Material
Full Carbon (with core)
Mast – Fuselage Connection Type
R8
