Sabfoil Mast Kraken 93Fuselage Connection: R8

SABFOIL-25-255

KITE FOIL
WING FOIL
WIND FOIL
DOWNWIND

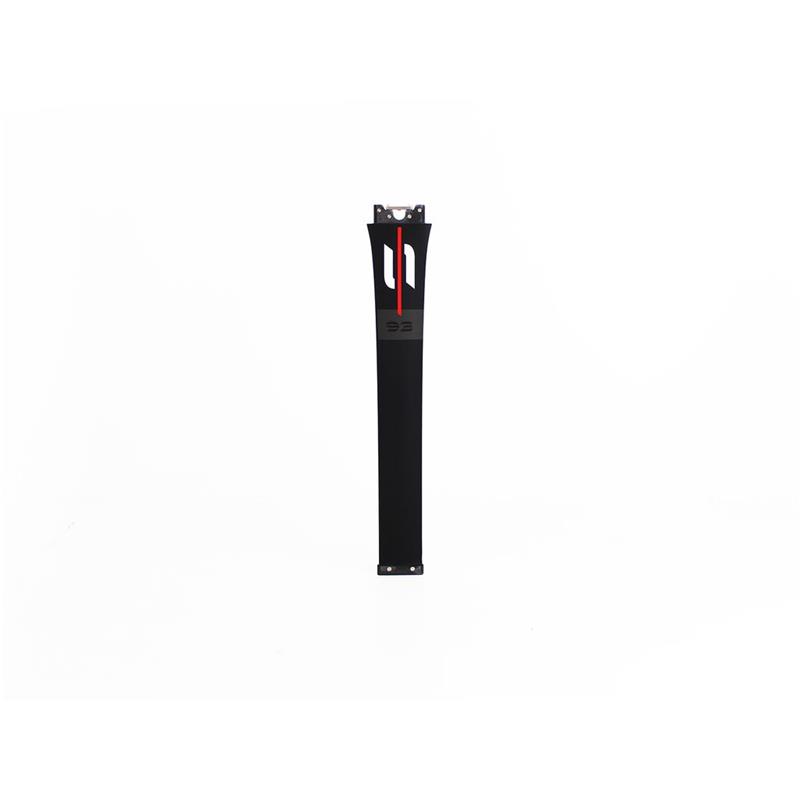

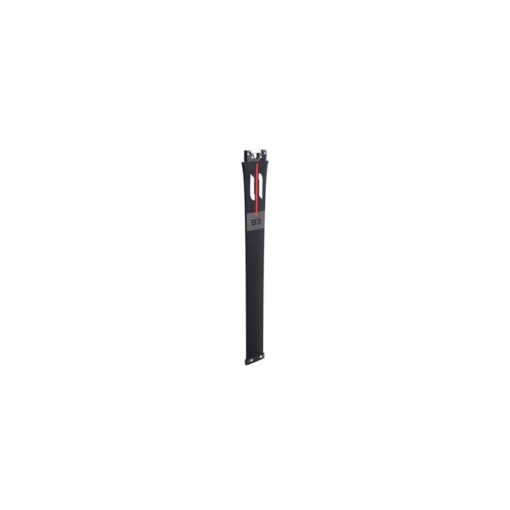

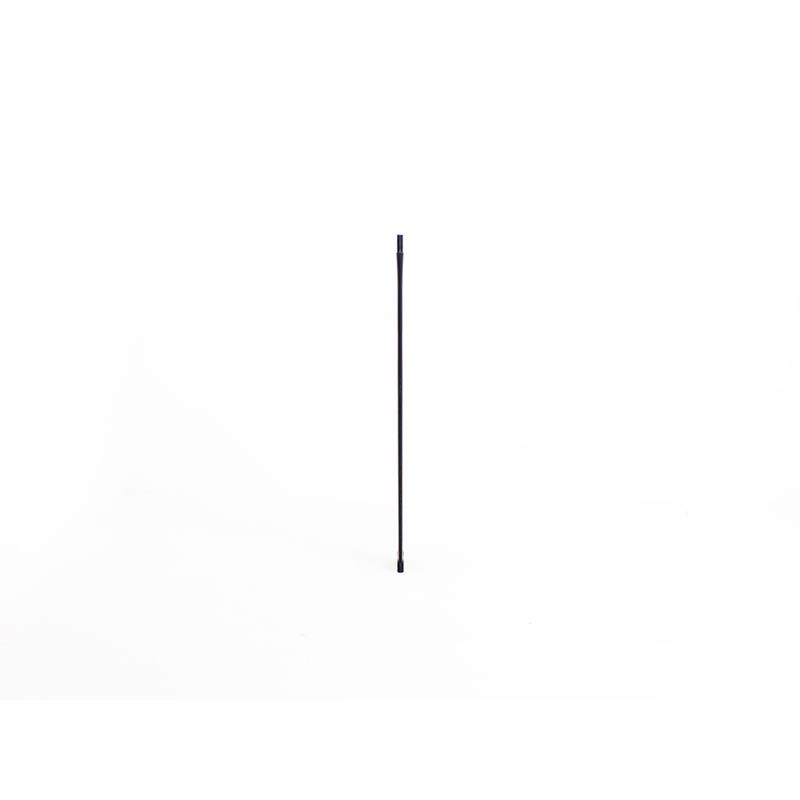

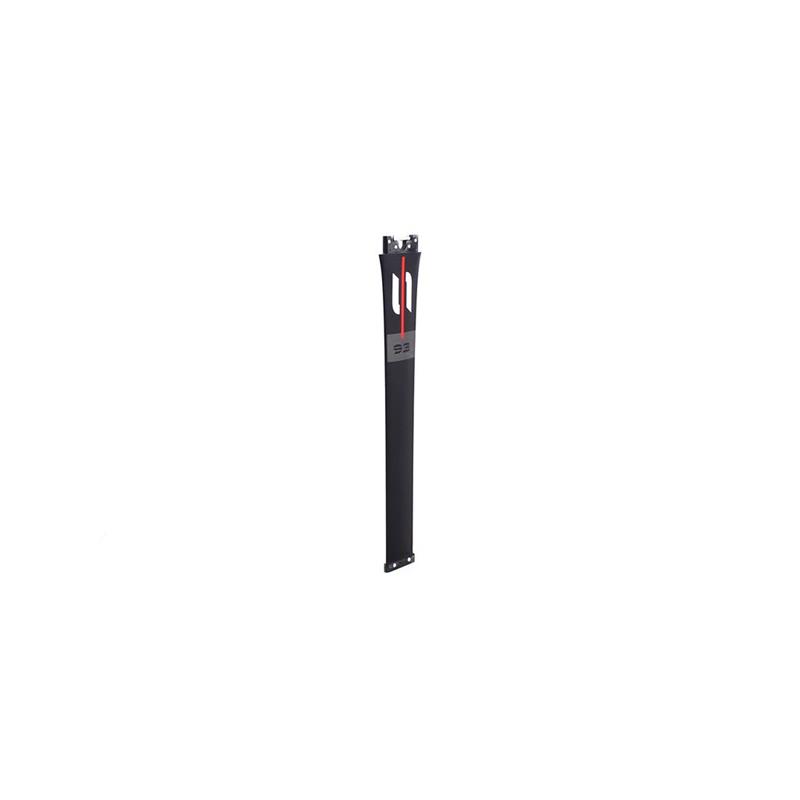

Sabfoil Kraken 93 | Hydrofoil Mast
MAIN SPECS

Full Carbon (with core)

Conn. System: R8

Height: 930 mm
Sabfoil Kraken 93 | Hydrofoil Mast specs
BENDING STIFFNESS
TORSIONAL STIFFNESS
SPEED
REACTIVITY
System Kraken Modular System
Recommended for Downwind – Freeride – Freestyle
Mast-Fuselage Connection R8
Material Carbon (with core)
Range Main Line

The profile of this 93 cm-long carbon mast has been optimized to have the maximum transversality between different disciplines. With this mast, you will be able to practice Wing-Foil, Surf-Foil, Kite-Foil, and Wind-Foil at maximum performance. Design, selected materials, and their use make this mast robust and performing, ideal for both speed and freestyle.

The Kraken Modular System makes this mast compatible with all fuselages belonging to the same SABFOIL range and allows you to choose the connection system to the board between Plate and Tuttle.

The MK/93 is hand sanded to achieve a matte surface with 0-thickness graphics, the SAB Pro Finish, for an elegant Made in Italy product with maximum performance.

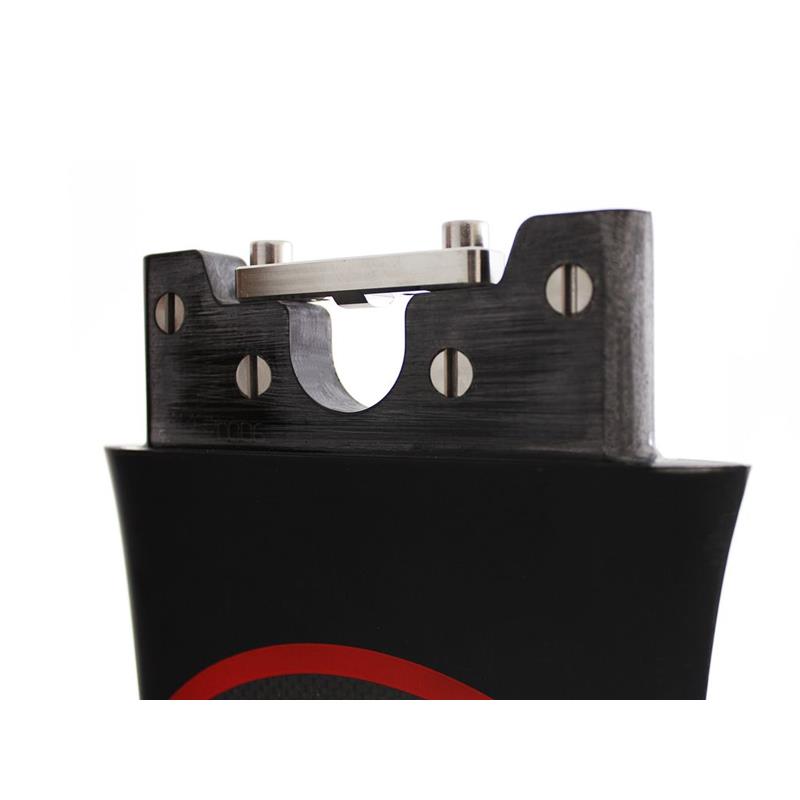

All Sabfoil masts are provided with the titanium module for pin support. Therefore, to equip your mast with our Titanium Quick Release System, simply add item MHQ02 to your cart.

Dimensions & Advanced specs
Mast – Height
930 mm
Mast – Thickness A
18,4 mm
Mast – Thickness B
16,1 mm
Mast – Thickness C
14 mm
Mast – Chord A
137,8 mm
Mast – Chord B
112,6 mm
Mast – Chord C
110,8 mm
Mast – Weight (ca.)
1660 g
Mast – Material
Full Carbon (with core)
Mast – Fuselage Connection Type
R8
Content
Sabfoil Kraken 93 | Hydrofoil Mast x 1
MK/93

Titanium Quick Release Module x 1
