Sabfoil Stabilizer 430240 cm2 – AR 7,70

SABFOIL-25-249

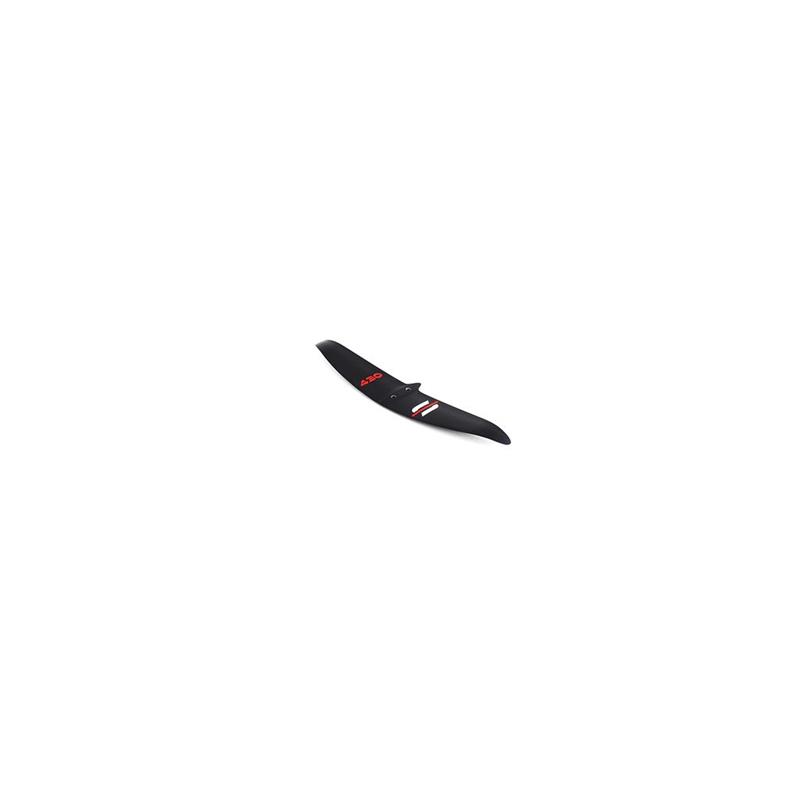

Sabfoil Gullwing 430 | Hydrofoil Stabilizer
MAIN SPECS

Surface: 240 cm2

AR: 7,70

Wingspan: 430 mm

Chord: 68 mm
Sabfoil Gullwing 430 | Hydrofoil Stabilizer specs
STABILITY
MANEUVERABILITY
SPEED
Range Gullwing
Stabilizer-Fuselage Connection Standard
Recommended with front wings 900 – 1500 cm2

This fast and versatile stabilizer is ideal for all those who want to increase the control and stability of their hydrofoil. The gullwing shape guarantees good directionality while riding without sacrificing maneuverability when needed.

The S430/PF is hand sanded to achieve a matte surface with 0-thickness graphics, the SAB Pro Finish, for an elegant Made in Italy product with maximum performance.

Dimensions & Advanced specs
Stabilizer – Span
430 mm
Stabilizer – Surface
240 cm2
Stabilizer – Root Chord
68 mm
Stabilizer – Aspect Ratio
7,70
Stabilizer – Maximum Thickness
7,5 mm
Stabilizer – Volume
102 cm3
Stabilizer – Weight (ca.)
109 g
Stabilizer – Material
Full Carbon (with core)
Content
Sabfoil Gullwing 430 | Hydrofoil Stabilizer x 1
SG/430

Hardware Kit S325/S355/S375/S380/S395/S425/S430/S450/S480/S483 x 1
MH108
