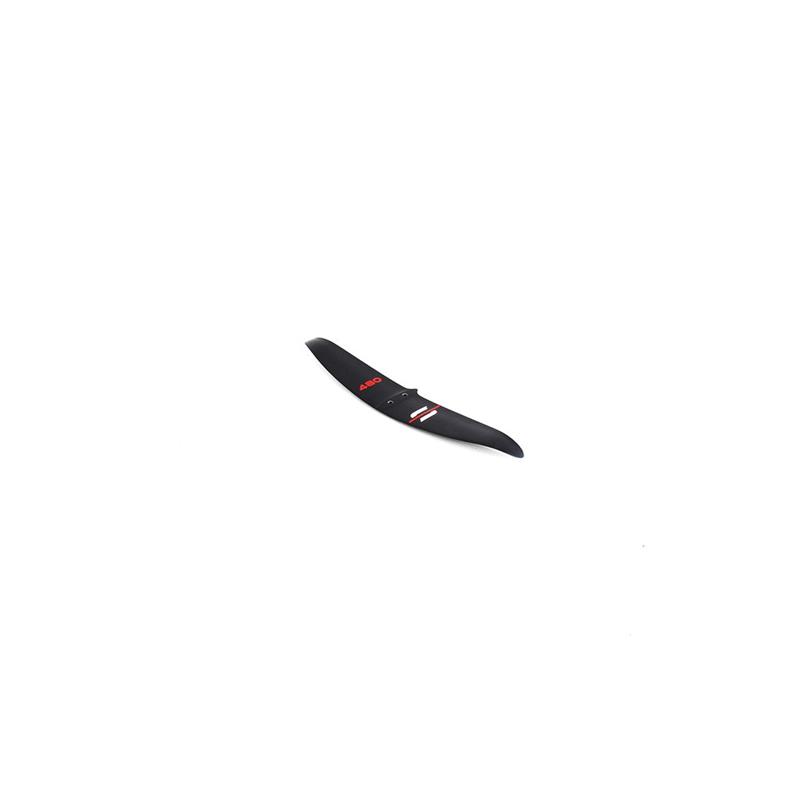

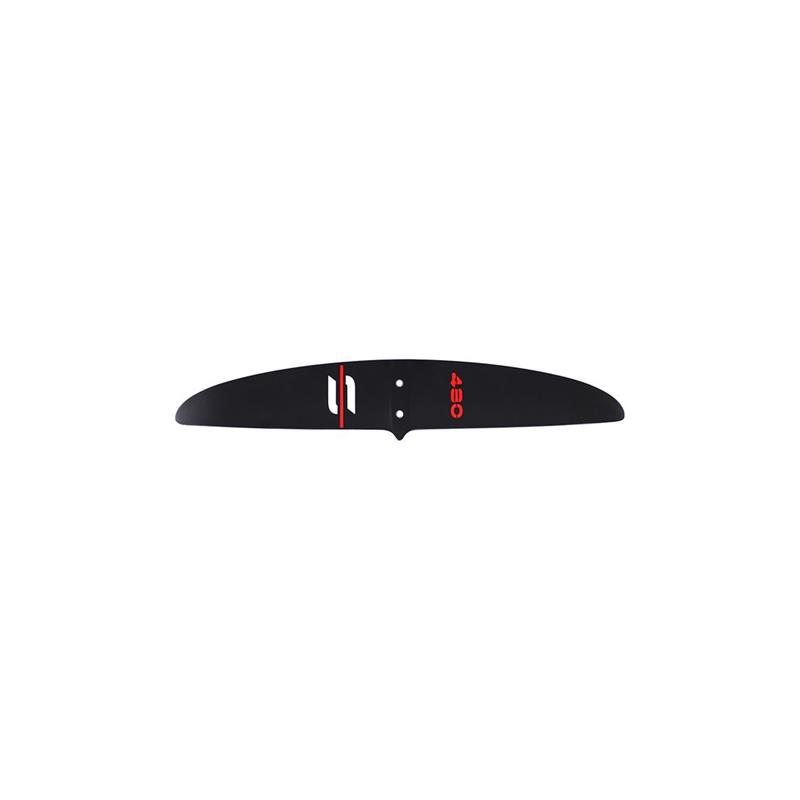

Sabfoil Stabilizer 480285 cm2 – AR 8,10

SABFOIL-25-250

Sabfoil Gullwing 480 | Hydrofoil Stabilizer
SPECIFICHE PRINCIPALI

Surface: 285 cm2

AR: 8,10

Wingspan: 480 mm

Chord: 76 mm
Sabfoil Gullwing 480 | Hydrofoil Stabilizer specs
STABILITY
MANEUVERABILITY
SPEED
Range Gullwing
Stabilizer-Fuselage Connection Standard
Recommended with front wings 1300 – 2400 cm2

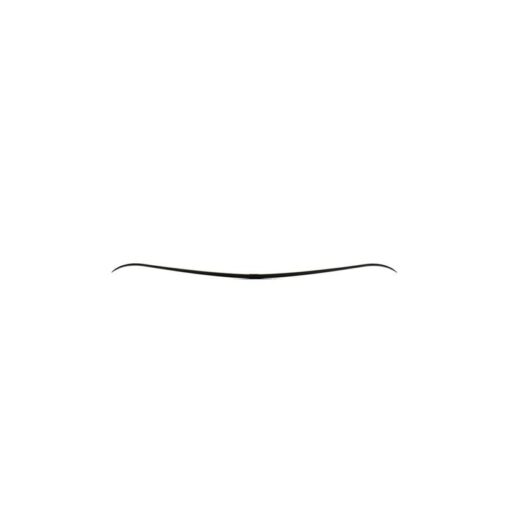

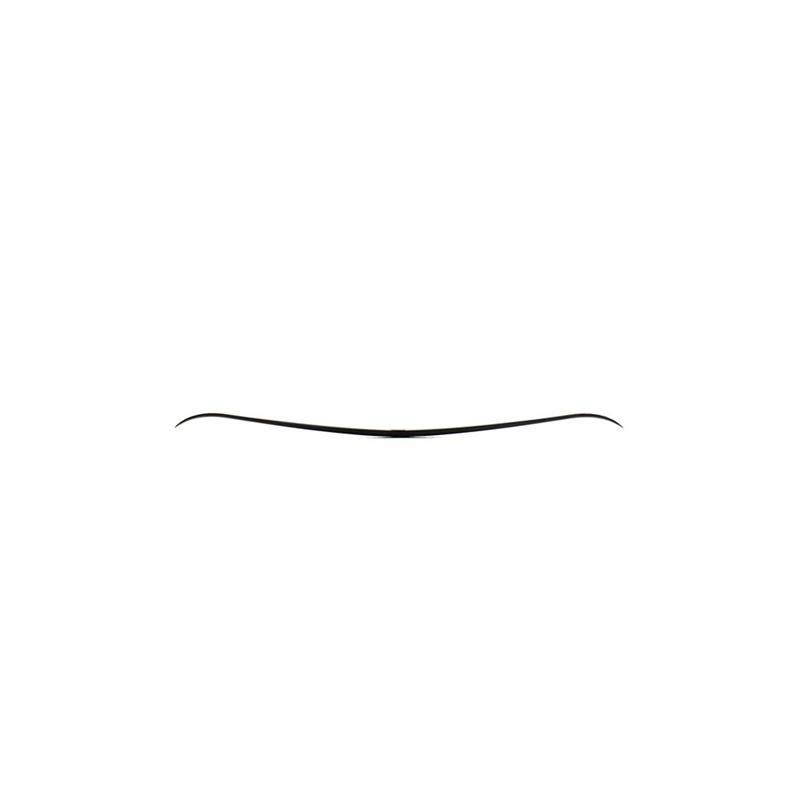

This fast and versatile stabilizer is ideal for all those who want to increase the control and stability of their hydrofoil. The gullwing shape guarantees good directionality while riding without sacrificing maneuverability when needed.

The S480/PF is hand sanded to achieve a matte surface with 0-thickness graphics, the SAB Pro Finish, for an elegant Made in Italy product with maximum performance.

Dimensions & Advanced specs
Stabilizer – Span
480 mm
Stabilizer – Surface
285 cm2
Stabilizer – Root Chord
76 mm
Stabilizer – Aspect Ratio
8,10
Stabilizer – Maximum Thickness
8,4 mm
Stabilizer – Volume
140 cm3
Stabilizer – Weight (ca.)
182 g
Stabilizer – Material
Full Carbon (with core)
Content
Sabfoil Gullwing 480 | Hydrofoil Stabilizer x 1
SG/480

Hardware Kit S325/S355/S375/S380/S395/S425/S430/S450/S480/S483 x 1
MH108
