Sabfoil Stabilizer Flat 325151 cm2 – AR 7,00

SABFOIL-25-245

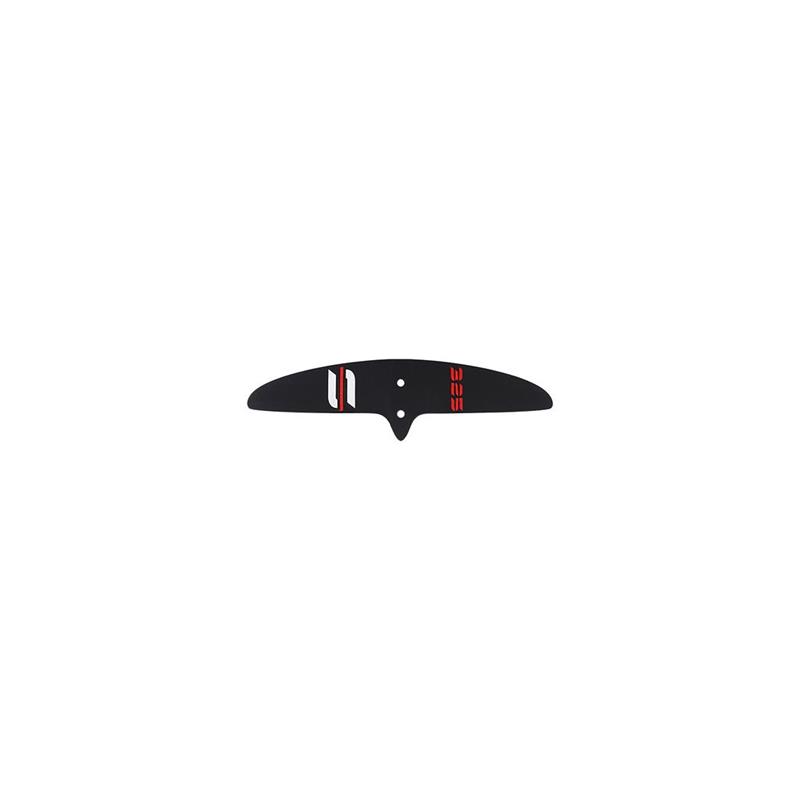

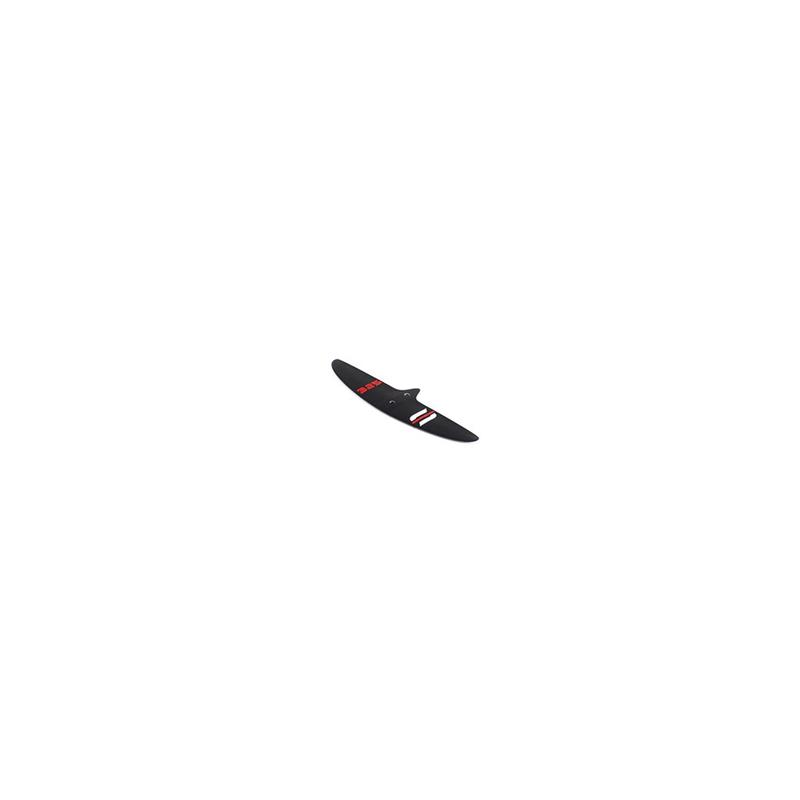

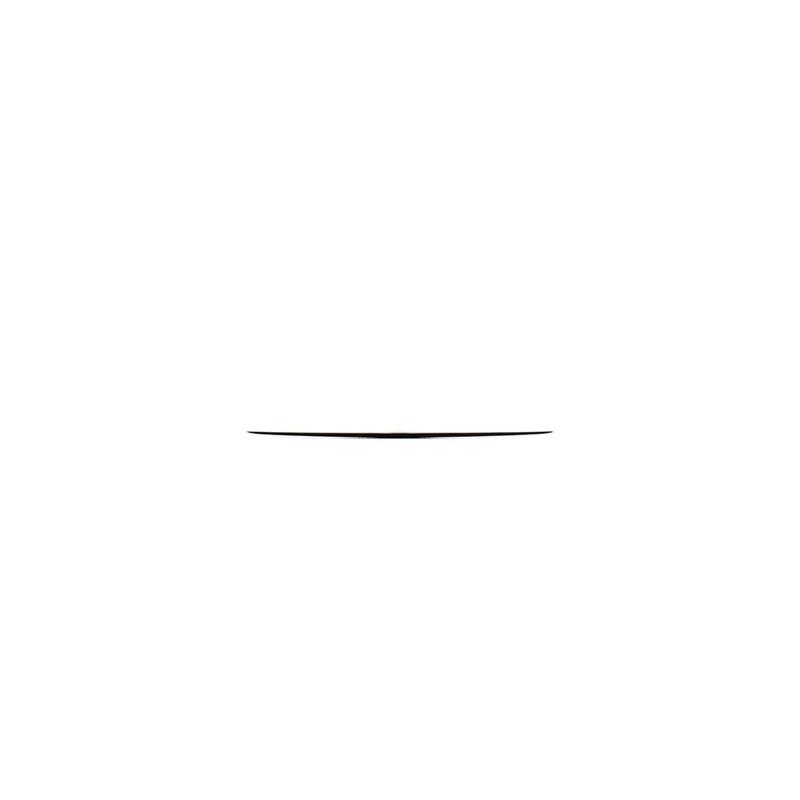

Sabfoil Flat 325 | Hydrofoil Stabilizer
MAIN SPECS

Surface: 155 cm2

AR: 7,05

Wingspan: 325 mm

Chord: 58,9 mm
Sabfoil Flat 325 | Hydrofoil Stabilizer specs
DRIVE
MANEUVERABILITY
SPEED
Range Flat
Stabilizer-Fuselage Connection Standard
Recommended with front wings 500 – 1000 cm2

This stabilizer makes maneuverability its strong point, thanks to its flat profile and lack of winglets.

The S325/PF is hand sanded to achieve a matte surface with 0-thickness graphics, the SAB Pro Finish, for an elegant Made in Italy product with maximum performance.

Dimensions & Advanced specs
Stabilizer – Span
325 mm
Stabilizer – Surface
155 cm2
Stabilizer – Root Chord
58,9 mm
Stabilizer – Aspect Ratio
7,05
Stabilizer – Maximum Thickness
6,4 mm
Stabilizer – Volume
61 cm3
Stabilizer – Weight (ca.)
90 g
Stabilizer – Material
Full Carbon (no core)
Content
Sabfoil Flat 325 | Hydrofoil Stabilizer x 1
SF/325

Hardware Kit S325/S355/S375/S380/S395/S425/S430/S450/S480/S483 x 1
MH108
