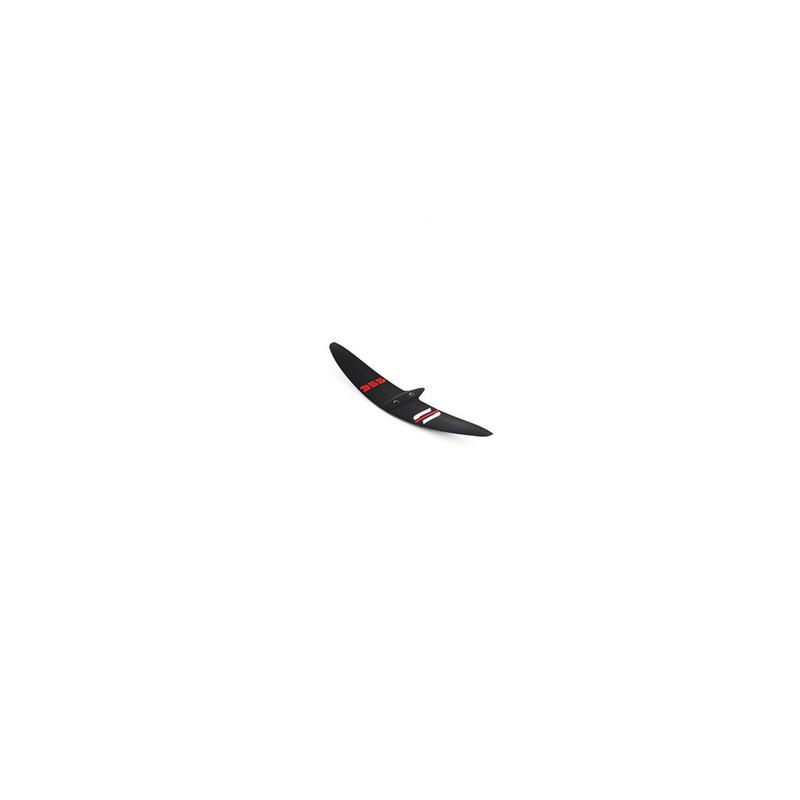

Sabfoil Stabilizer Reverse 355160 cm2 – AR 8,08

SABFOIL-25-242

Sabfoil Reverse 355 | Hydrofoil Stabilizer
MAIN SPECS

Surface: 160 cm2

AR: 8,08

Wingspan: 360 mm

Chord: 58,48 mm
Sabfoil Reverse 355 | Hydrofoil Stabilizer specs
STABILITY
MANEUVERABILITY
SPEED
Range Reverse
Stabilizer-Fuselage Connection Standard
Recommended with front wings 500 – 1100 cm2

Thanks to the slim profile and the accentuated reverse dihedral angle, this stabilizer is designed for those looking for excellent performance in terms of speed and directionality. The design also provides great maneuverability and makes it ideal for carving.

The S355/PF is hand sanded to achieve a matte surface with 0-thickness graphics, the SAB Pro Finish, for an elegant Made in Italy product with maximum performance.

Dimensions & Advanced specs
Stabilizer – Span
360 mm
Stabilizer – Surface
160 cm2
Stabilizer – Root Chord
58,48 mm
Stabilizer – Aspect Ratio
8,08
Stabilizer – Maximum Thickness
6,47 mm
Stabilizer – Volume
65,5 cm3
Stabilizer – Weight (ca.)
94 g
Stabilizer – Material
Full Carbon (coreless)
Content
Sabfoil Reverse 355 | Hydrofoil Stabilizer x 1
SR/355

Hardware Kit S325/S355/S375/S380/S395/S425/S430/S450/S480/S483 x 1
MH108
