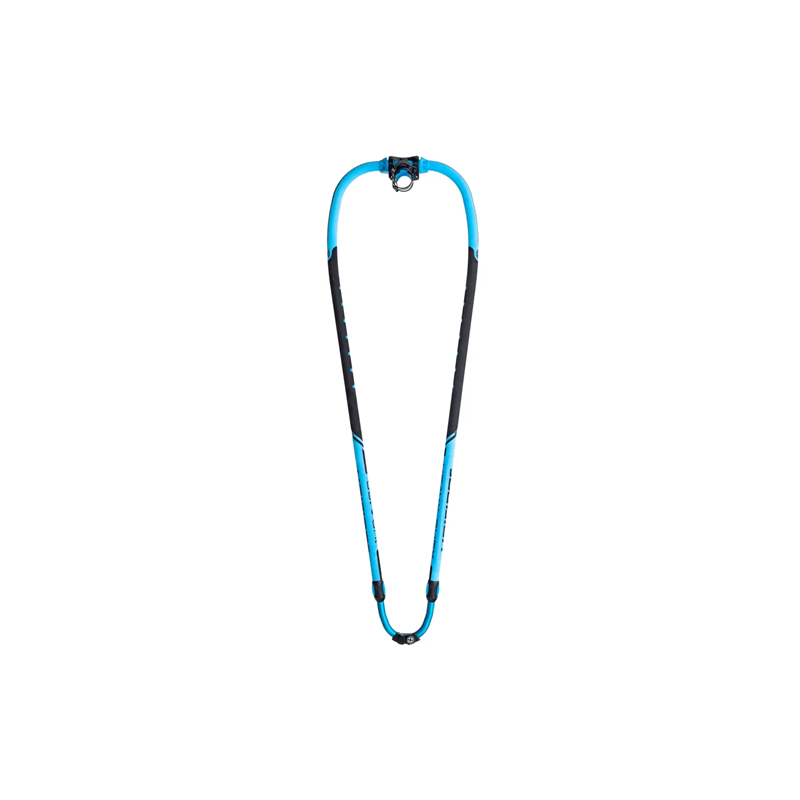

Unifiber Aluminium HD Monocoque 2024

Description

These rugged, Heavy-Duty reinforced aluminium models have an increased tube wall thickness for superior stiffness and durability.

The 140 and 160 sizes – with a 27mm diameter grip sections and standard modern tail widths – are designed for higher-level freeride, bump & jump, and wave sailors. The 180 and 200 sizes utilize wide tails to accommodate deeper sail profiles, 29mm diameter grip sections, and extra-oversized tail sections for maximum stiffness and durability.

The boom arm curves are precision-engineered for maximum deflection resistance coming close to matching ultimate-spec carbon booms. All HD booms feature anodized tails that provide better corrosion resistance.

Features the all-new «Configure Me» Modular Boom Head.

Benefit from the advantages of a modular boom system. The modular boom head fits all «Configure Me» Boom Bodies. Swapping the boom head is effortless and takes seconds – no tools required. For example: with 1 boom head, 2 boom bodies and 1 tail you have 2 high-performance booms of different sizes. This makes the most of your available budget, storage space, baggage allowance.

Be part of the future! Enjoy light weight and absolute performance. Benefit from «Configure Me» modular options to combine, renew and upgrade components as required.

–
Specifications

SKU

UF012010100

Description

Aluminium HD Monocoque 140-190

Boom Length Range

140-190 cm

Boom Body Grip Diameter

27 mm

Boom Body Maximum Inner Width

37 cm

Boom Body Maximum Outer Diameter

27 mm

Boom Body Shape

C-shape

Boom Body Tube Wall Thickness

2 mm

Boom Grip Graphics

Inlaid, Embossed & Rubber Label

Boom Head Axial Movement

Yes

Boom Head Connection

Configure Me Quick Release

Boom Head Mast Diameter Compatibility

SDM and RDM adapters included

Boom High

0

Boom Low

0

Boom Material

Aluminium T8

Boom Stiffness

****

Boom Tail Diameter

22.5 mm

Boom Tail Inner Width

12 cm

Boom Tail Locking System

Double Pin Locks mounted on Boom Body

Boom Tail System

Loop&Go

Boom Tube Construction

Monocoque Boom Body

Operating Weight

2.671 kg

Master Carton Length

162 cm

Master Carton Width

55 cm

Master Carton Height

15 cm

Master Carton QTY

6

HS-Code

95062900

Volume

0.022275 m³
