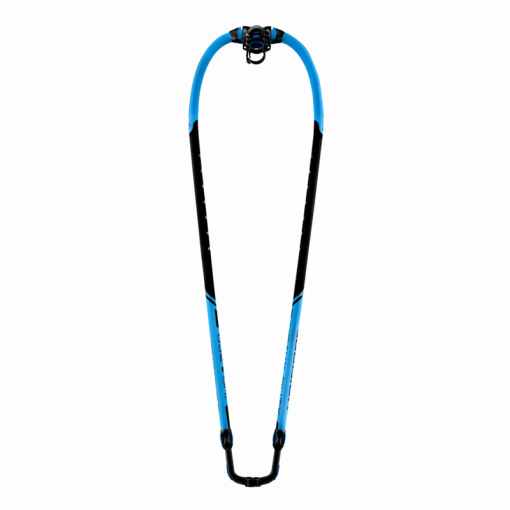

Unifiber Carbon HD Monocoque V2 2024

Description

The HD (Heavy Duty) 70% pre-preg carbon lay-up strikes a superb performance balance between stiffness, durability and price. Tube walls are further reinforced to withstand heavy abuse and reduce wear and tear.

Shorter sizes are paired with narrow tails to fit a more compact sail profile often used for Bump & Jump and Wave sails.

Sizes 190 and 220 are fitted with larger diameter outside tails that minimizes the back-end swing weight and keep the rig under better control. Those tails have a wider outline to work better with modern race sails and not distort their profiles.

All HD carbon booms feature the all-new «Configure Me» Modular Boom Head to fully benefit from the advantages of a modular boom system. The modular boom head fits all «Configure Me» Boom Bodies. Swapping the boom head is effortless and takes seconds – no tools required. For example: with 1 boom head, 3 boom bodies and 1 tail you have 3 high-performance booms of different sizes. Combine, renew and upgrade components as you need.

Be part of the future! Enjoy light weight and absolute performance.

–
Specifications

SKU

UF012020180

Description

Carbon HD Monocoque V2 140-200

Boom Length Range

140-200 cm

Boom Body Grip Diameter

26×27 mm

Boom Body Maximum Inner Width

38 cm

Boom Body Maximum Outer Diameter

27 mm

Boom Body Shape

C-shape

Boom Body Tube Wall Thickness

2.2 mm

Boom Grip Graphics

Inlaid & Embossed

Boom Head Axial Movement

Yes

Boom Head Mast Diameter Compatibility

SDM and RDM adapters included

Boom High

0

Boom Low

0

Boom Material

Carbon Prepreg 70%

Boom Stiffness

******

Boom Tail Diameter

21 mm

Boom Tail Inner Width

12 cm

Boom Tail Locking System

Double Pin Locks mounted on Boom Body

Boom Tail System

Loop&Go

Boom Tube Construction

Monocoque Boom Body

Operating Weight

2.31 kg

Master Carton Length

162 cm

Master Carton Width

55 cm

Master Carton Height

15 cm

Master Carton QTY

6

HS-Code

95062900

Volume

0.022275 m³
