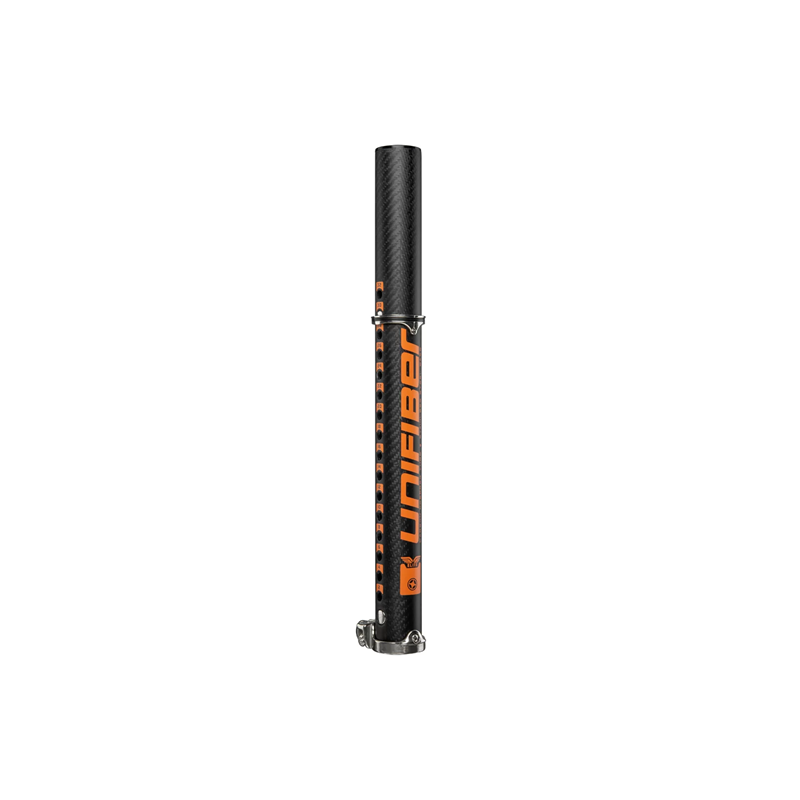

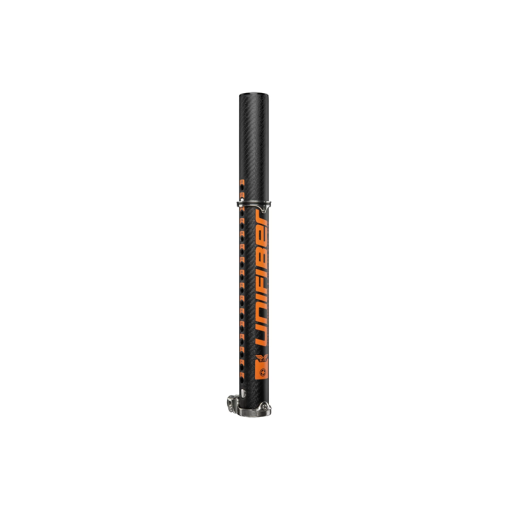

Unifiber Elite SDM V2 Carbon Mast Extension (U-Pin) 2024

Description

SDM Elite V2 Carbon Mast Extension design is about maximizing both performance and durability.

Whether you are blasting through heavy chop or setting new speed records, Elite V2 Carbon Extension maintains the integrity of your rig.

Its 3-pulley configuration offers a maximum ratio of 8:1, making it perfect for race sail designs that require very high downhaul tensions.

The pre-preg carbon tube keeps the weight low and gives a responsive feel to your rig. The connection between the carbon tube and the stainless steel base of the extension is direct and stiff.

Operating the open-and-slide adjustment collar is easy and can be done even with one hand.

The extension’s base is flat with no grooves or protrusions, making rigging bare-foot friendly.

–
Specifications

SKU

UF030041010

Description

Elite SDM V2 Carbon Mast Extension (U-Pin) 32

Mast Extension Range

4 – 32 cm

Baseplate Locking Mechanism

U-Pin Push Button

Mast Extension Barefoot Friendly Rigging

Yes

Mast Extension Collar

Stainless Steel «Slide & Lock»

Mast Extension Construction

Carbon

Mast Extension Downhaul Ratio

8:1 – 3 pulleys

Mast Extension Graphics

Screenprinted

Mast Extension Maximum Length Setting (cm)

32

Mast Extension Minimal Length Setting

4 cm

Mast Extension Outside Tube Diameter

47 mm

Mast Extension Pulley Orientation

0 Degrees

Mast Extension Reinforcement

Stainless Steel

Mast Extension Rope Compatibility

3.8mm – 4.0mm

Mast Extension Rope Quality

Dyneema 4.0mm

Mast Extension Setting Steps (mm)

20

Mast Extension Wall Thickness

3 mm

Mast Extension Compatability

U-Pin

Mast Extensions Pulley Diameter

15 mm

Operating Weight

0.59 kg

Mast Extension Diameter

SDM

Master Carton Length

50 cm

Master Carton Width

50 cm

Master Carton Height

30 cm

Master Carton QTY

50

HS-Code

95062900

Volume

0.0015 m³
