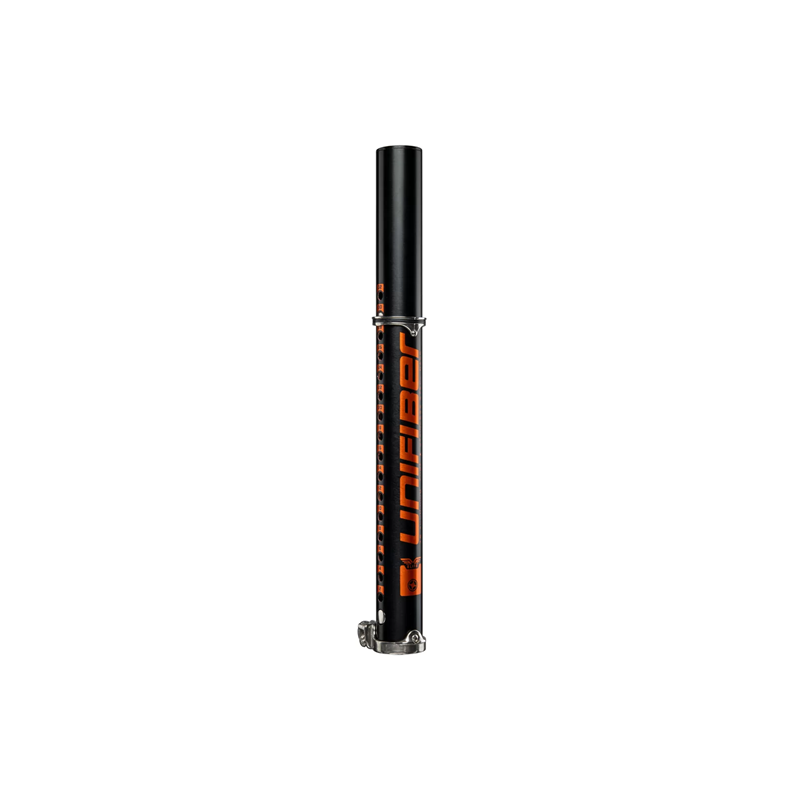

Unifiber Elite SDM V2 Stainless Steel Mast Extension (U-Pin) 2024

Description

SDM Elite V2 Carbon Mast Extension design is about maximizing both performance and durability.

Whether you are blasting through heavy chop or setting new speed records, Elite V2 Carbon Extension maintains the integrity of your rig.

Its 3-pulley configuration with a maximum ratio of 8:1 requires less effort to achieve a necessary downhaul setting. This makes the Elite V2 SDM extension perfect for race sail designs that require very high downhaul tensions.

The direct connection between the hardened T6 alluminium tube and the stainless steel base is stiff, solid and extremely durable.

Adjusting the length is easy and intuitive with the open-and-slide collar that can be conveniently operated even with one hand.

The smooth flat surface of the extension’s base makes it easy to rig even barefoot.

–
Specifications

SKU

UF030083020

Description

Elite SDM V2 Stainless Steel Mast Extension (U-Pin) 32

Mast Extension Range

4 – 32 cm

Baseplate Locking Mechanism

U-Pin Push Button

Mast Extension Barefoot Friendly Rigging

Yes

Mast Extension Collar

Stainless Steel «Slide & Lock»

Mast Extension Construction

Aluminium

Mast Extension Downhaul Ratio

8:1 – 3 pulleys

Mast Extension Graphics

Anodized

Mast Extension Maximum Length Setting (cm)

32

Mast Extension Minimal Length Setting

4 cm

Mast Extension Outside Tube Diameter

47 mm

Mast Extension Pulley Orientation

0 Degrees

Mast Extension Reinforcement

Stainless Steel

Mast Extension Rope Compatibility

3.8mm – 4.0mm

Mast Extension Rope Quality

Dyneema 4.0mm

Mast Extension Setting Steps (mm)

20

Mast Extension Wall Thickness

2.5 mm

Mast Extension Compatability

U-Pin

Mast Extensions Pulley Diameter

15 mm

Operating Weight

0.72 kg

Mast Extension Diameter

SDM

Master Carton Length

54 cm

Master Carton Width

30 cm

Master Carton Height

24 cm

Master Carton QTY

20

HS-Code

95062900

Volume

0.001944 m³
