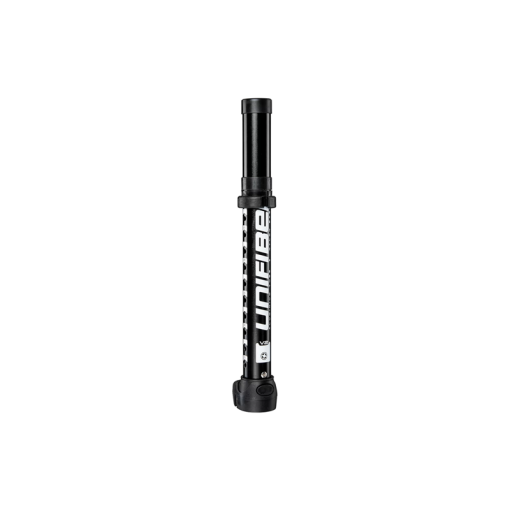

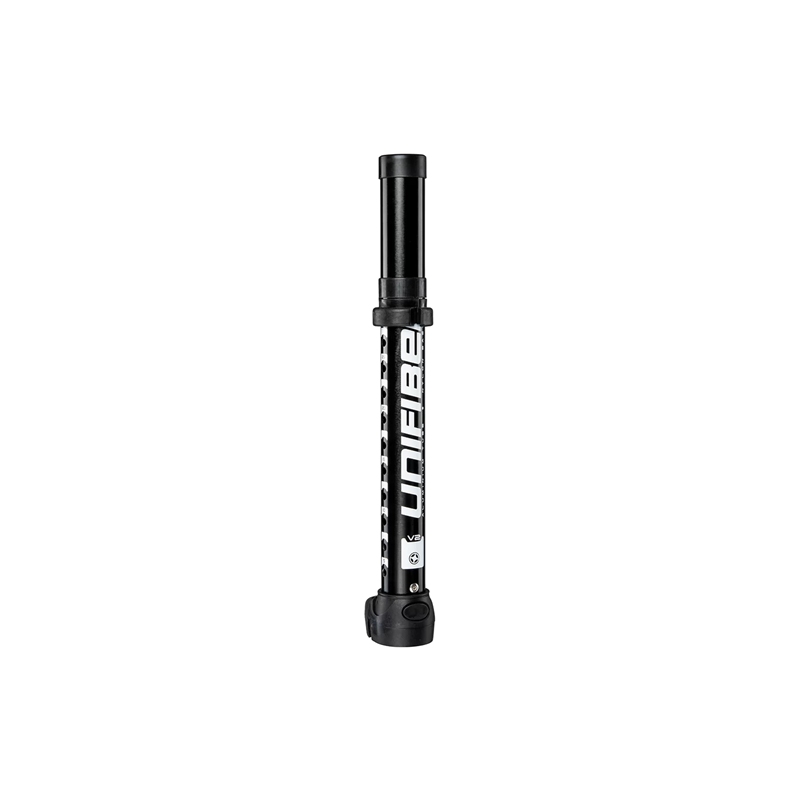

Unifiber Essentials SDM V2 Aluminium Mast Extension (U-Pin) 2024

Description

Essentials SDM extension is a go-to for beginners and recreational windsurfers.

Reinforced nylon base features a pulley with three increased diameter rolls allowing easier downhauling. The base is large enough to rig comfortable even barefoot.

With the convenient cleat placement, the downhaul rope can be released with a single jerk.

–
Specifications

SKU

UF030035055

Description

Essentials SDM V2 Aluminium Mast Extension (U-Pin) 30

Mast Extension Range

10 – 30 cm

Baseplate Locking Mechanism

U-Pin Push Button

Mast Extension Barefoot Friendly Rigging

Yes

Mast Extension Collar

Polyamide Hinged

Mast Extension Construction

Aluminium

Mast Extension Downhaul Ratio

8:1 – 3 pulleys

Mast Extension Graphics

Screenprinted

Mast Extension Maximum Length Setting (cm)

30

Mast Extension Minimal Length Setting

10 cm

Mast Extension Outside Tube Diameter

44 mm

Mast Extension Pulley Orientation

0 Degrees

Mast Extension Reinforcement

None

Mast Extension Rope Compatibility

3.8mm – 4.0mm

Mast Extension Rope Length

140 cm

Mast Extension Rope Quality

Polyester 4.0mm

Mast Extension Setting Steps (mm)

25

Mast Extension Wall Thickness

1.5 mm

Mast Extension Compatability

U-Pin

Mast Extensions Pulley Diameter

14 mm

Operating Weight

0.493 kg

Mast Extension Diameter

SDM

Master Carton Length

70 cm

Master Carton Width

50 cm

Master Carton Height

30 cm

Master Carton QTY

50

HS-Code

95062900

Volume

0.0021 m³
