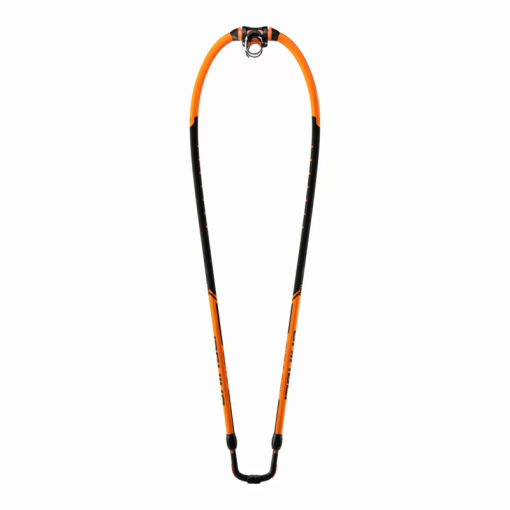

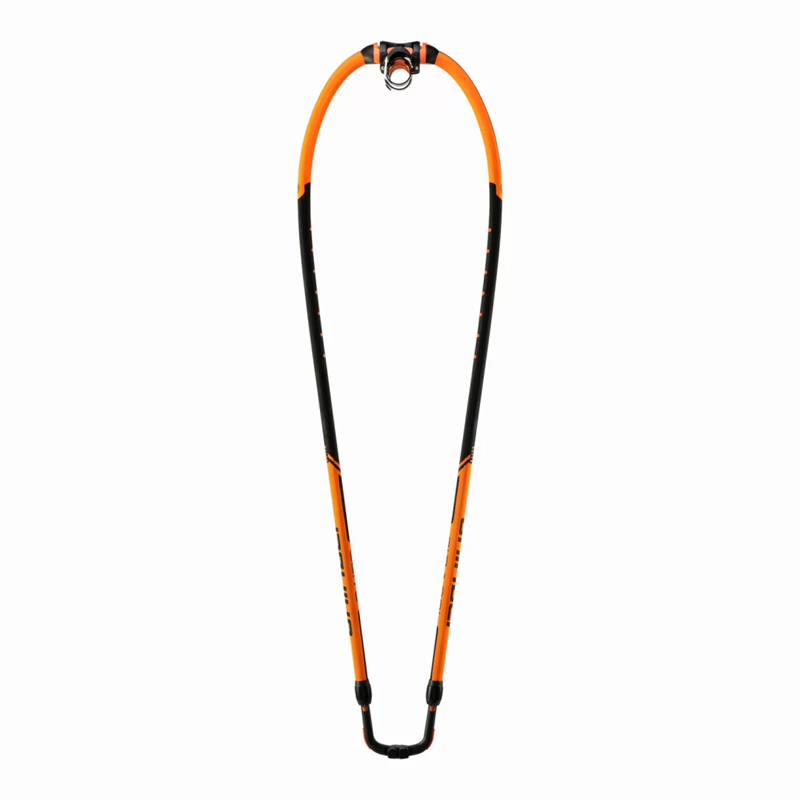

Unifiber Carbon Elite Monocoque V2 2024

Description

Elite carbon booms are custom manufactured from the highest grade pre-preg carbon. These designs are targeted at the professional user searching for the greatest stiffness and lightest weight.

Short 140 model has the thinnest grip diameter in the range and a narrow profile to better suit compact sail profiles found in Bump & Jump and Wave sails.

Sizes 190 and 220 are fitted with larger diameter outside tails that minimizes the back-end swing weight and keep the rig under better control. Those tails have a wider outline to work better with modern race sails and not distort their profiles.

All Elite carbon booms feature the all-new «Configure Me» Modular Boom Head to fully benefit from the advantages of a modular boom system. The modular boom head fits all «Configure Me» Boom Bodies. Swapping the boom head is effortless and takes seconds – no tools required. For example: with 1 boom head, 3 boom bodies and 1 tail you have 3 high-performance booms of different sizes. This makes the most of your available budget, storage space, baggage allowance.

Be part of the future! Enjoy light weight and top-notch performance. Benefit from «Configure Me» modular options to combine, renew and upgrade components as required.

–
Specifications

SKU

UF012020240

Description

Carbon Elite Monocoque V2 160-220

Boom Length Range

160-220 cm

Boom Body Grip Diameter

26×27 mm

Boom Body Maximum Inner Width

42 cm

Boom Body Maximum Outer Diameter

27 mm

Boom Body Shape

C-shape

Boom Body Tube Wall Thickness

2 mm

Boom Grip Graphics

Inlaid & Embossed

Boom Head Axial Movement

Yes

Boom Head Connection

Configure Me Quick Release

Boom Head Mast Diameter Compatibility

SDM and RDM adapters included

Boom High

0

Boom Low

0

Boom Material

Carbon Prepreg 100%

Boom Stiffness

*******

Boom Tail Diameter

21 mm

Boom Tail Inner Width

12 cm

Boom Tail Locking System

Double Pin Locks mounted on Boom Body

Boom Tail System

Loop&Go

Boom Tube Construction

Monocoque Boom Body

Operating Weight

2.33 kg

Master Carton Length

182 cm

Master Carton Width

59 cm

Master Carton Height

15 cm

Master Carton QTY

6

HS-Code

95062900

Volume

0.026845 m³
