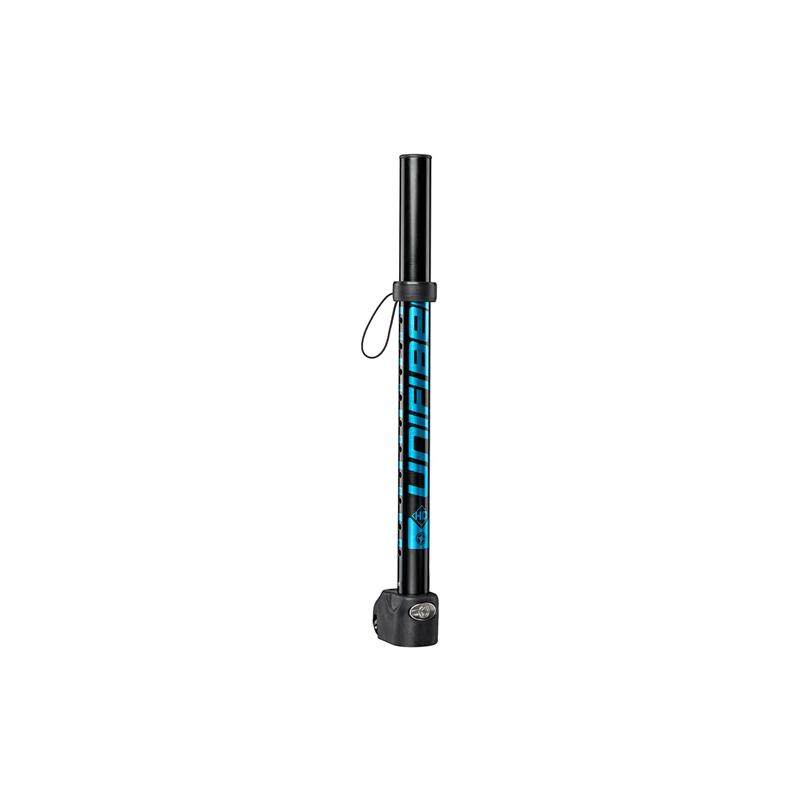

Unifiber HD RDM Aluminium Mast Extension (U-Pin) 2024

Description

Designed to survive under heavy loads, HD RDM extensions are best suited for high-performance racers and wave riders.

Rigid and sturdy, all parts of the extension are toughened to give a piece of mind even in the gnarliest situations.

The main tube is manufactured from hardened T6 aluminium and the nylon base is fiber-reinforced. The connection between both parts is fortified using a stainless steel insert.

Pulley/cleat system orientation makes rigging easy and intuitive.

–
Specifications

SKU

UF030035045

Description

HD RDM Aluminium Mast Extension (U-Pin) 30

Mast Extension Range

5 – 30 cm

Baseplate Locking Mechanism

U-Pin Push Button

Mast Extension Barefoot Friendly Rigging

Yes

Mast Extension Collar

Nylon + Stainless Steel Reinforced Ring+Pin

Mast Extension Construction

Aluminium

Mast Extension Downhaul Ratio

6:1 – 2 pulleys

Mast Extension Graphics

Anodized

Mast Extension Maximum Length Setting (cm)

30

Mast Extension Minimal Length Setting

5 cm

Mast Extension Outside Tube Diameter

32 mm

Mast Extension Pulley Orientation

0 Degrees

Mast Extension Reinforcement

Aluminium

Mast Extension Rope Compatibility

3.8mm – 4.0mm

Mast Extension Rope Quality

Pre-stretched Polyester 4.0mm

Mast Extension Setting Steps (mm)

25

Mast Extension Wall Thickness

3 mm

Mast Extension Compatability

U-Pin

Mast Extensions Pulley Diameter

17 mm

Operating Weight

0.77 kg

Mast Extension Diameter

RDM

Master Carton Length

50 cm

Master Carton Width

50 cm

Master Carton Height

30 cm

Master Carton QTY

50

HS-Code

95062900

Volume

0.0015 m³

Warranty Term
